| Brand Name : | Remarkable |
| Model Number : | RWP-5T |
| Certification : | CE, ISO |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability : | 500 sets per year |
| Delivery Time : | 30-45 work days |

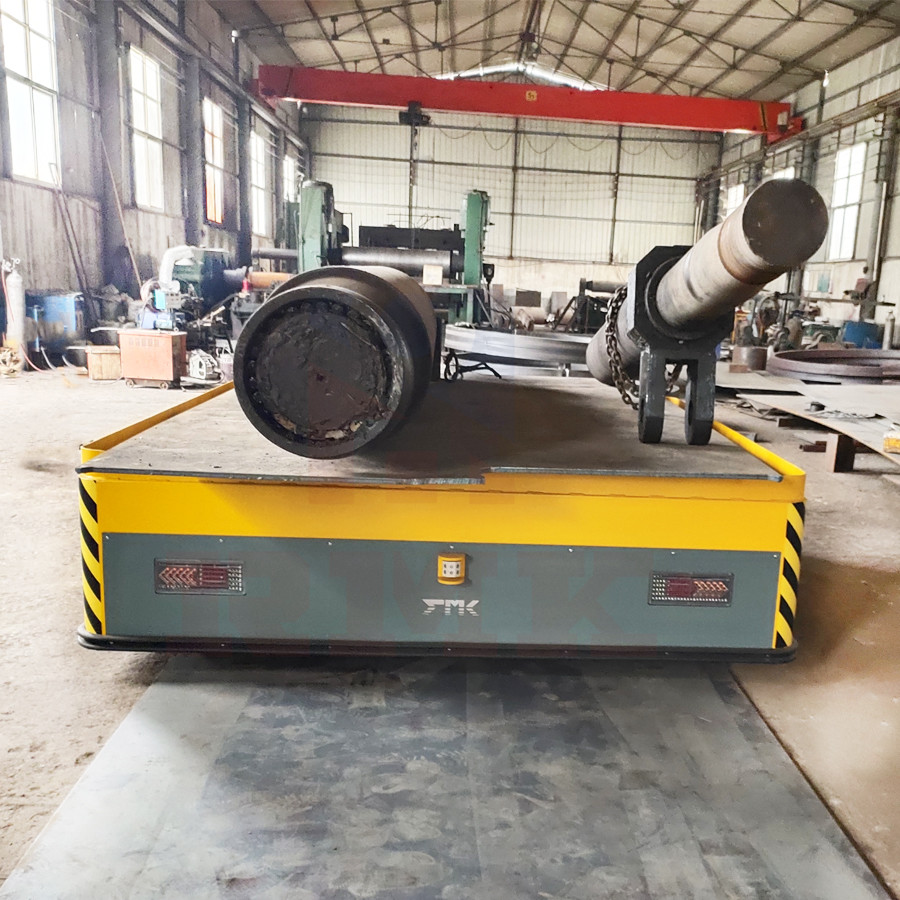

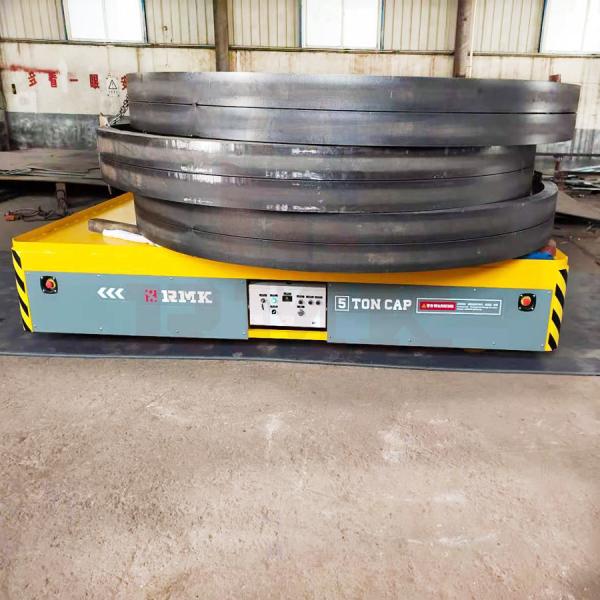

The 5 Tons Steel Billet Battery Transfer Trolley Uses A Battery As A Power Source To Provide Electricity For The Transfer Car, Uses An LED Sound And Light Alarm As A Work And Warning Sign, And Uses A Smart Charger As An External Power Input. With The Cooperation Of The Above Functions, The Working Capacity Of The Battery Electric Transfer Car Is Formed Together. Use The Operating Handle Or Remote Control And The Computer Panel To Control The Forward, Reverse, And Stop Of The Motor, And Then Control The Forward And Backward, Rotation, Start, And Stop Of The Electric Transfer Car. Henan Remarkable's Battery Trackless Transfer Car Is Not Limited By The Site, No Need To Lay The Track, And The PLC Control System Is Added, Which Can Realize Automation And Greatly Improve Work Efficiency.
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
Advantages About Electric Transfer Trolley:
1. High Level Automation(Self Propelled/Steerable)
2. The Largest Capacity Can Reach To 100t
3. Safe Parts Are Installed In The Transfer Car(Warning Light,
E-Stop, Buffer...)
4. Robust Sturdy Car Frame
5. AC/DC Electric Engine , Diesel Engine Or Pneumatic Engine
6. Excellent Gear Reducer And Motor With High Quality, Assemblied
Together Perfectly
7. Remote Control&Hand Pendant Control Make The Opration More
Convenient.
8. The Speed Can Be Adjusted
9. Easy Operation And Maintenance
10. Famous Brand Parts, Guarantee The Quality And Prolong The Using
Lifetime
11. Low Noise And Do Not Pollute The Environment
|
|
