Henan Remarkable Intelligent Technology Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | Remarkable |
| Model Number : | RWP |
| Certification : | CE, ISO |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 600 |
| Delivery Time : | 30-45 work days |

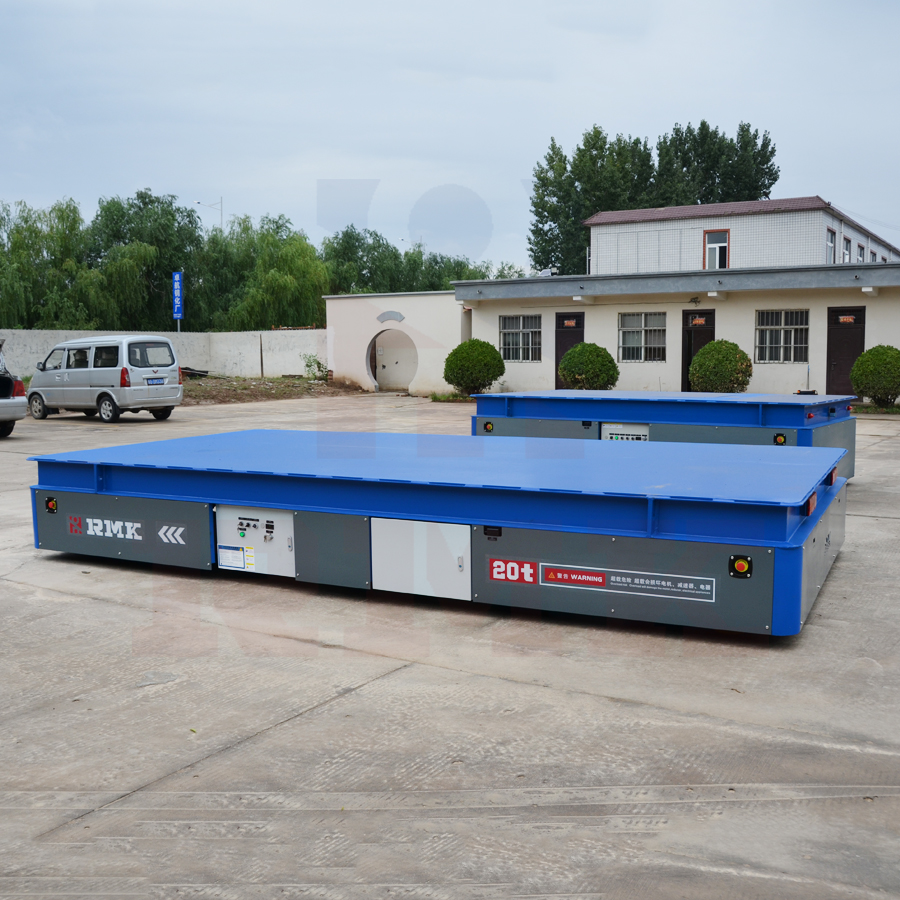

Automatic Charging Material Handling Trolley , 20T Flexible Electric Flat Car
It is used in a variety of factories and industries, such as assembly line (annular production line, annular production line), metallurgical industry (ladle), warehouse transportation, shipbuilding industry (maintenance, assembly, container transportation), workshop workpiece transportation, lathe transportation, steel plant (steel and steel structure such as billet, steel plate, steel coil, steel pipe and profile), building (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polysilicon, generator, windmill), chemical industry (electrolytic cell, distiller, etc.), railway (road maintenance, welding, tractor).
In addition to meeting the basic transportation requirements, remaker trackless electric flat car can also add hydraulic lifting system according to the user's requirements to realize the functions of table lifting and rollover. Some customers require transfer vehicles with special shapes when transporting different materials. For example, we can install rollers on the vehicle to avoid mutual interference and apply automatic production workshop or this flow production line.

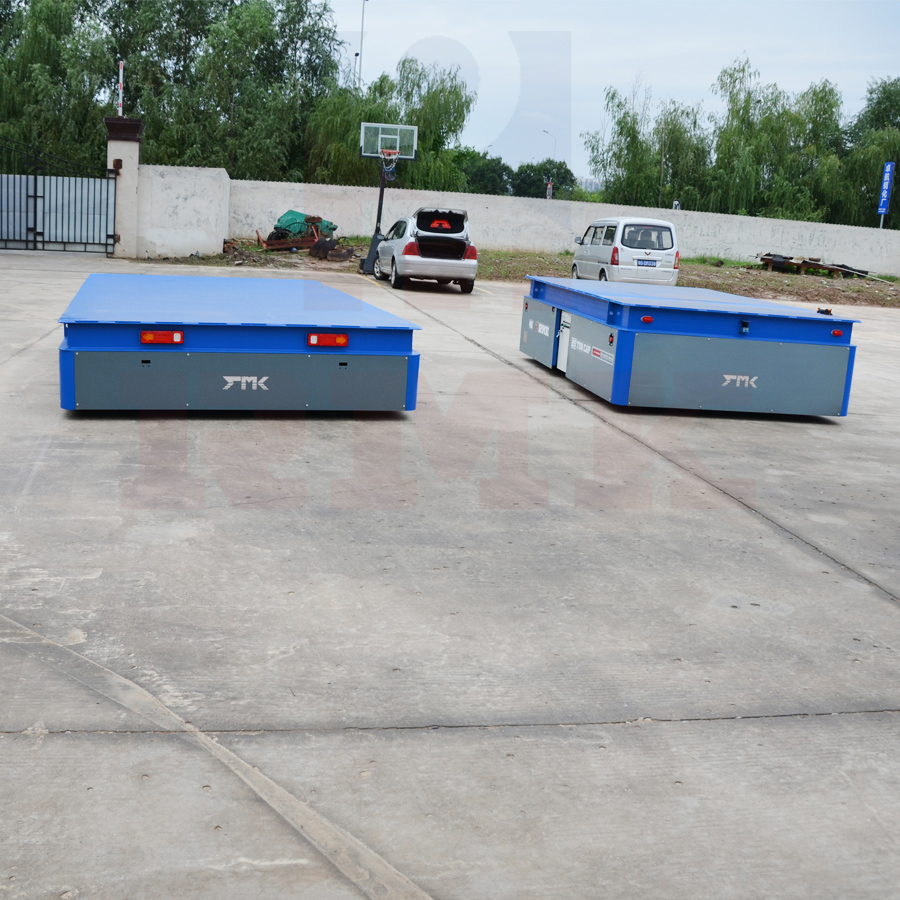

Automatic Charging Material Handling Trolley , 20T Flexible Electric Flat Car
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
|
|
