Brand Name : | Remarkable |
Model Number : | RXP, RWP |
Certification : | CE, SGS, ISO |
Price : | Price negotiation |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 600/years |
Delivery Time : | 40-45 work days |

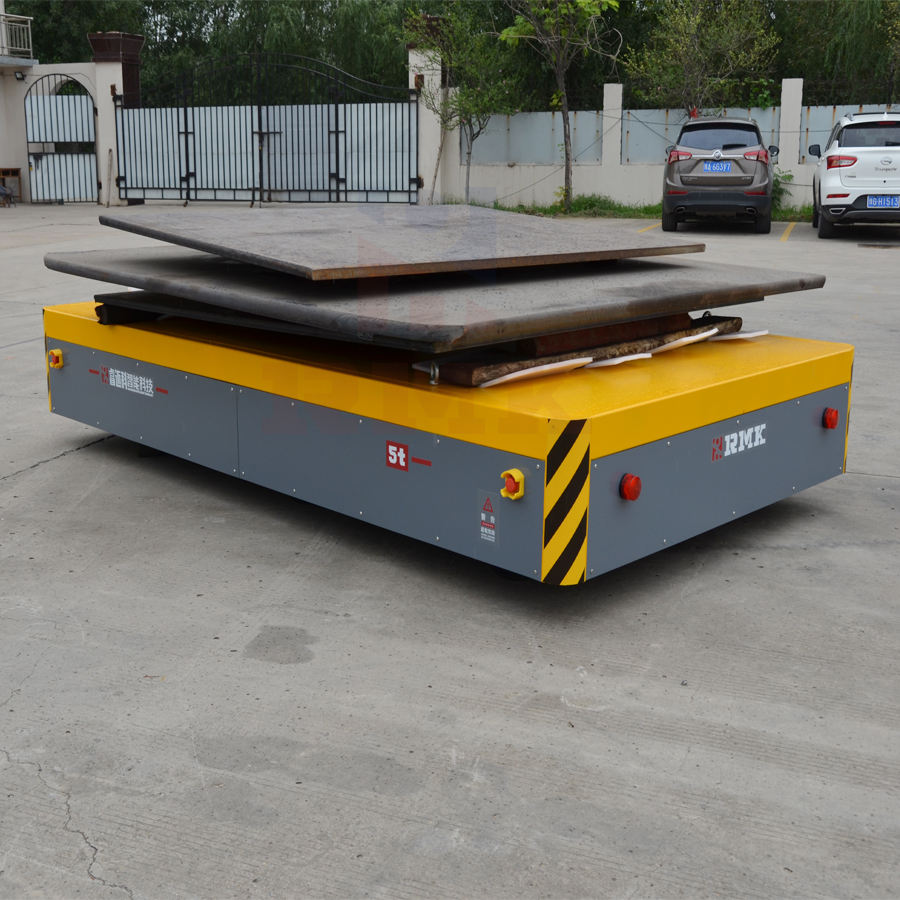

Electric Driven Load Transfer Trolley
Electirc driven load transfer trolley is a kind fo battery trackless transfer cart no need track, Intelligent operation. Both cable and remote control type, it will stopped immediately and alert automatically when detected pedestrians or obstacles. Equipped with fully automatic intelligent charger instead of manual charge. REMARKABLE transfer cart moved and speed adjusted by DC motor, multi-wheel hydraulic steering, with big capacity battery. Working achieve intelligence and full automation. REMARKABLE transfer cart products have exquisite appearance, beautiful appearance, small size and compact structure. It can take hundreds Ton with its light weight body. Max load capacity 500 Ton. Mostly it takes 200 Ton to 300 Ton goods, moved smoothly on the ground, and turning 360 degrees at same position. Stable and safety whenever go straight or turn. We can custom diving-type cart go under the goods bottom, lift it to move.
Technical parameters for trackless electric transfer carts | ||||||||
Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
Impacted rated loa(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
Structure of frame | steel plates welded, beam structure | |||||||
Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
Ground requirement | cement floor | steel plate ground | ||||||
Table size(mm) | 3000× 2000 | 3600× 2000 | 4000× 2200 | 4500× 2200 | 5000× 2200 | 5500× 2300 | 6000× 2300 | 10000× 3000 |
Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
Ground clearanc(mm) | 50 | 75 | ||||||
Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
Turning type | turning while driving with no stop | |||||||
Control method for turning | control button | |||||||
Turning structure | mechanical | |||||||
Wheel material | ZG55+hydropur ture | |||||||
Running speed(m/min) | 0-15 | 0-12 | ||||||
Brake principle | electric magnetic brake | |||||||
Operation method | with wire or no wire | |||||||
Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
Battery maintenance | free of maintenance | |||||||
Charger's installation | installed on cart | split-type |
REMARKABLE trackless electric transfer cart has been successfully applied in domestic space companies, and has been highly recognized and praised by users.
Application: mold field, car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, nuclear energy, hydraulic engineering, etc..
For material transfer: mold, boiler, coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mould, beam, container, heavy equipment, Aluminum product, compressor, polycrystalline silicon, motor, coil, scrap, pallet.
All can be customized as per customers’ requirements. And our business is meeting your business need, hope our professional team can help you well with rich experience.
![]() |
