Henan Remarkable Intelligent Technology Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | Remarkable |
| Model Number : | RWP-10T |
| Certification : | CE, ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability : | 500 sets per year |
| Delivery Time : | 30-45 days |

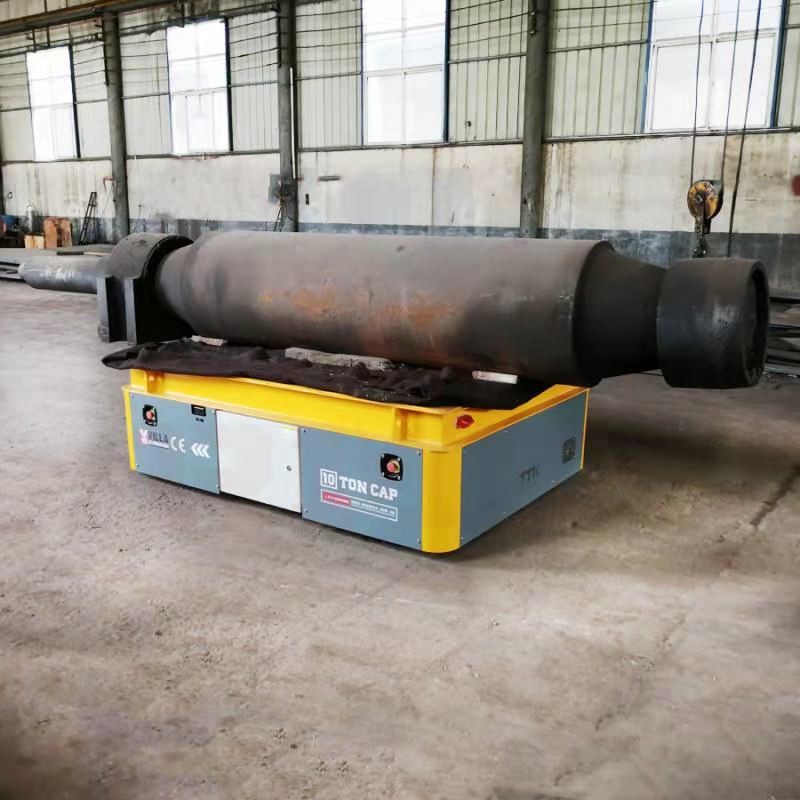

10 Tons Mold Transfer Cart Is One Kind Of Transfer Equipment That Can Transport Transformer, Stone Materials, Steel Rebar, Brick Kiln, Bridge Metal, Steel Pipe, Steel Tube, Hopper, Steel Billet, Steel Coil, Steel Plate, Injection Mold Steel Beam Transport In Steel Plant From Bay To Bay, And Mold Plant, Workshop Materials, Steel Bar, Steel Structure, Steel Plate, Steel Coil, Pallet, Pipe And Other Materials.
10 Tons Material Transfer Trolley Produced By Henan Remarkable Company, It Is Not Only Integrate The Design Concept Of Crane And The Safety Factor Of Crane, But Also Considers The Practicability Of Products From The Perspective Of Practical Production The Inconveniences In The Use Process And The Problems In The Long-Term Use Process Of Customers Should Be Improved And Gradually Improved. Through The Long-Term Experience Accumulation Of Customers And The Summary Of The Company's Customer Feedback System, The Overall Table Of Electric Die Transfer Cart, Especially The Table Which Bears Concentrated Load For A Long Time, Will Appear Pits Where There Is No Support Bar, That Is, The Flatness Of The Table Will Gradually Decrease, To Meet Market Demand-Oriented, Customer Satisfaction As The Criterion, Is Our Company's Business Philosophy.
| Technical parameters for trackless electric transfer carts | |||||||
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure | ||||||
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground | |||||
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 | ||||||
| wheels base(mm) | 1500 | 1700 | 1800 | ||||
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop | ||||||
| control method for turning | control button | ||||||
| turning structure | mechanical | ||||||
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 | ||
| wheel material | ZG55+hydropur ture | ||||||
| running speed(m/min) | 0-20 | ||||||
| brake principle | electric magnetic brake | ||||||
| operation method | with wire or no wire | ||||||
| battery maintenance | free of maintenance | ||||||
| charger's installation | installed on cart | split-type | |||||
| radar control | 3-0.3m, automatic stop for obstacles | ||||||
| warning equipment | sound and light | ||||||
| other functions | turning light, night light and power display | ||||||
|
|
