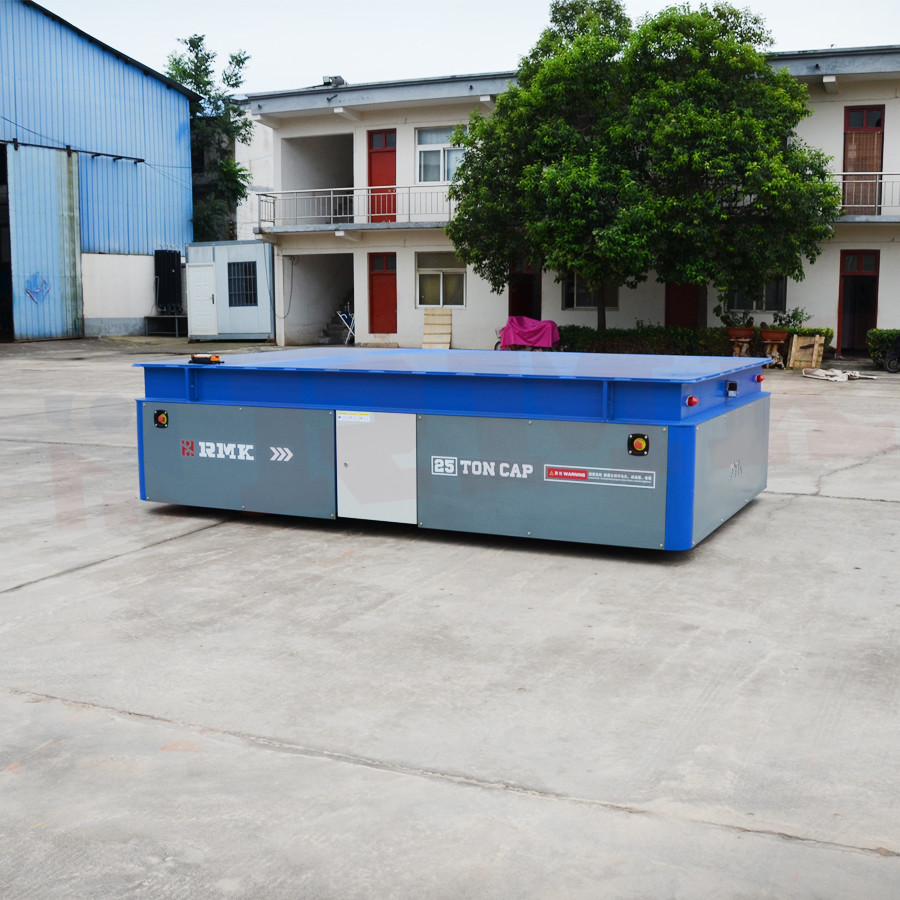

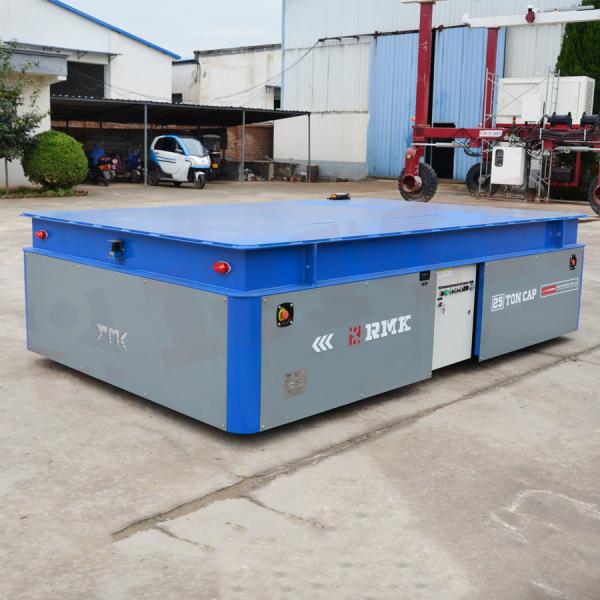

    Hydraulic Lifting Automatic Transfer Cart , 25 Tons Heavy Duty Transport Trolley

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : RWP-25T
    Certification : CE, ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 550 sets/year
    Delivery Time : 40-45 days
    • Product Details
    • Company Profile

    Hydraulic Lifting Automatic Transfer Cart , 25 Tons Heavy Duty Transport Trolley

    Hydraulic Lifting Automatic Transfer Cart , 25 Tons Heavy Duty Transport Trolley

    Remarkable RWP series ttrackless battery transfer trolley is a transport vehicle with safety protection and various load transfer functions. It uses lead-acid battery or lithium battery as energy, DC motor speed regulation drive technology, multi wheel hydraulic steering technology and dual operation modes of wire control and remote control to enable the flat car to realize the functions of start, stop, forward, backward and turning. Trackless series transfer cars have the advantages of high safety and mobility, stable operation, high precision, high speed, high flexibility, large load and high efficiency.


    The biggest advantage of trackless transfer trolley is that it does not need to lay steel rails, and the traveling route is not limited, which is convenient for material transportation in workshops, open areas and warehouses. It is widely used in aerospace, military industry, machinery manufacturing, automobile industry, heavy industry manufacturing, mold manufacturing, engineering machinery, shipbuilding, port freight yard, steel plate distribution, iron and steel metallurgy, mine transportation and other industries.


    Hydraulic Lifting Automatic Transfer Cart , 25 Tons Heavy Duty Transport Trolley


    Technical parameters for trackless electric transfer carts
    rated load(t)5101520304050
    impacted rated load(t)7.51522.530456075
    structure of framesteel plates welded, beam structure
    ground requirementcement floorsteel plate ground
    table size(mm)3000×20003600×20004000×22004500×22005000×22005500×23006000×2300
    height of the whole cart(mm)450530600600650700700
    ground clearance(mm)50
    turning typeturning while driving with no stop
    control method for turningcontrol button
    turning structuremechanical
    motor power(Kw)3.5567101215
    wheel materialZG55+hydropur ture
    running speed(m/min)0-20
    brake principleelectric magnetic brake
    operation methodwith wire or no wire
    battery maintenancefree of maintenance
    charger's installationinstalled on cartsplit-type
    radar control3-0.3m, automatic stop for obstacles
    warning equipmentsound and light
    other functionsturning light, night light and power display

    Case:


    Remarkable exported the 3-ton intelligent lifting trackless truck of LTL transformers (PVT) Ltd, a well-known transformer company in Sri Lanka, which has been highly praised by customers. It is convenient to operate and use in work and greatly improves productivity. Remarkable ordered another 25 ton heavy-duty trackless truck from us. The trackless truck is also equipped with hydraulic lifting table and automatic obstacle avoidance functions, It is used for the transfer of transformers, power equipment and other materials in its production workshop.


    Hydraulic Lifting Automatic Transfer Cart , 25 Tons Heavy Duty Transport TrolleyHydraulic Lifting Automatic Transfer Cart , 25 Tons Heavy Duty Transport Trolley
