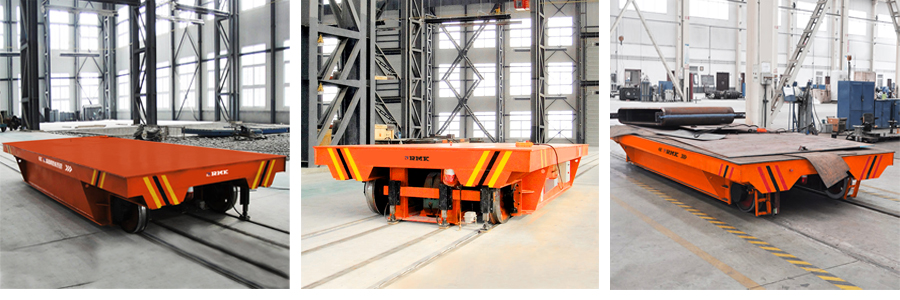

Heavy Load Rail Transfer Trolley With Steel Plate Battery Power Railroad Transport
Heavy load steel plate battery power railroad transport rail transfer trolley for heavy materials handling, it is an electric railway transfer trolley powered by battery, or Low voltage rail, or cable, etc.. Can customized the power supply mode as you need. It is designed for transporting cargoes or equipment from one bay to another in factory, from indoor to outdoor. It has widely applied in the industry transportation field, our company can designed the trolley to meet our customers' demand.
Heavy load steel plate battery power railroad transport rail transfer trolley for dies, literally speak, it is an electric battery power trolley with rails, which is the traditional and mature type railway transfer trolley. More importantly, it has been new favorite in the industry transport field all over the world with hot market. Especially for industrial workshop transportation and outdoor transportation, heavy load, safe, easy to operate, suitable for all kinds of working conditions and outdoor environment, such as cold wave, high temperature, etc..

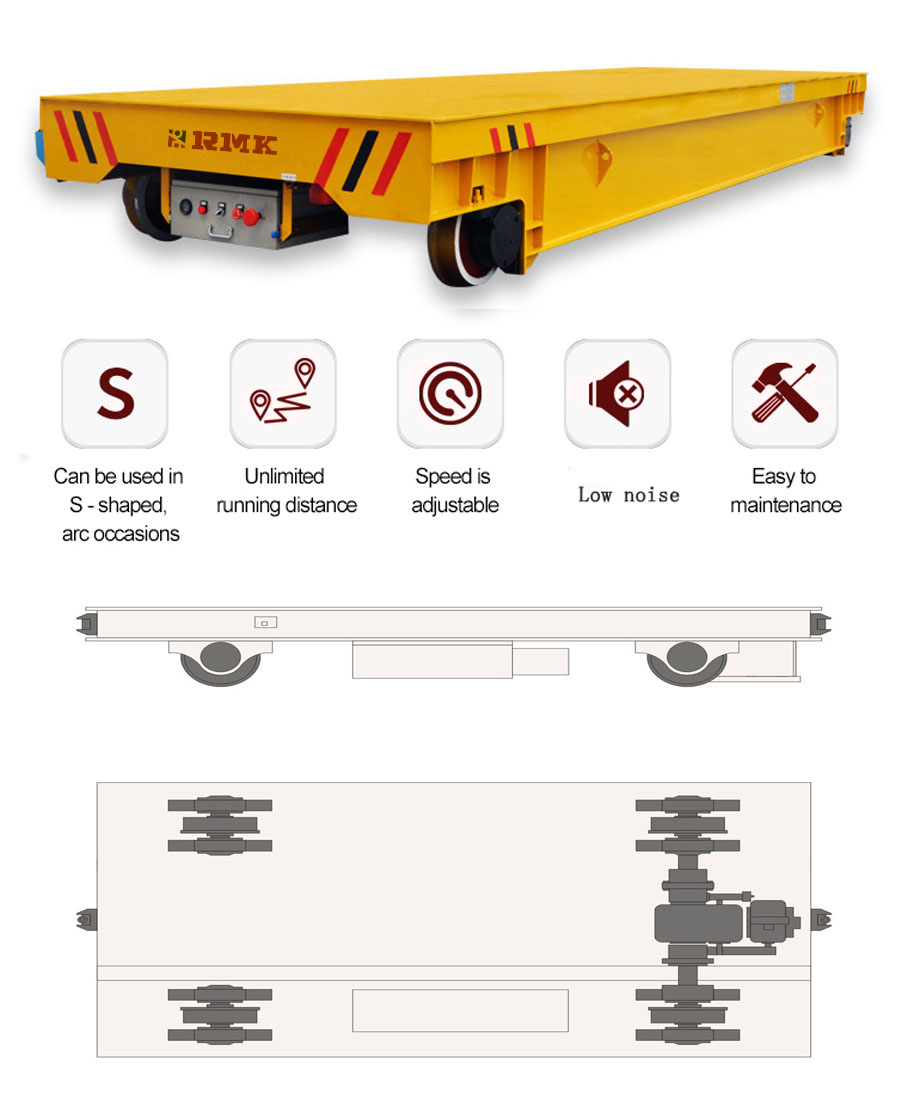

| Technical parameters for rail power transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
| Note: 1) Other gauges, table sizes and load tonnages can be
customized according to user requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. | ||||||||||
Remarkable was to design and build a die transfer cart, or more specifically, a self-propelled OMNI-directional heavy duty platform cart to manage the movement of the molds within the plant. The advantage of this is safety, speed up mold transportation within the plant and improve factory productivity, Optimise the use of space in the mold storage area. We can design roller carrier, pallet, lifting device according to the needs of customers and the characteristics of transport materials, and cooperate with the transfer vehicle.
Load capacity, table size, V-shape holder, speed can be designed as per your demand. Strong R&D capacity will provide you more support for material handling solution.
