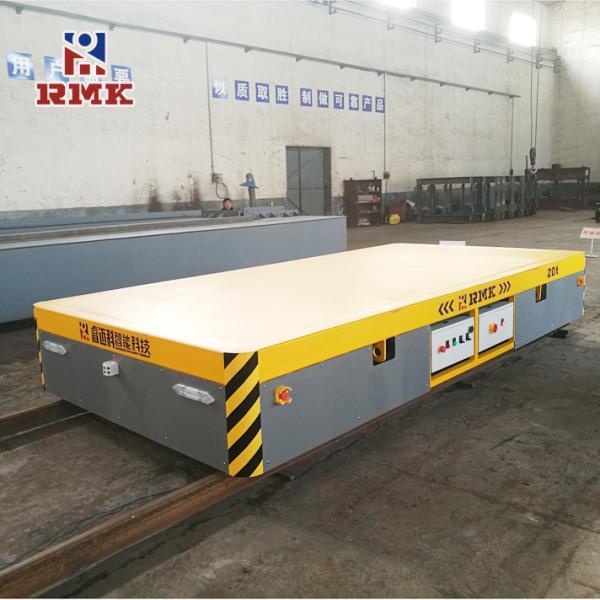

Large-scale machinery rail transfer trolley battery handling
equipment, also known as Flat Electric Transfer cart, trolley car, crossover
car, electric rail car, ground climbing car, etc., is a kind of
in-plant electric rail transport vehicles, first of all, it is a
rail-type transport vehicles, the need to lay tracks on the ground,
track is generally i-shaped surface contact rail; Secondly, it is
an electrically driven vehicle that runs automatically under the
drive of motor reducer. Thirdly, it is a flat car with a flat
surface and no hatchcover. Under special circumstances, it can be
non-flat but no hatchcover. This kind of vehicle has simple
structure, convenient use, large carrying capacity, not dirty not
to hit, easy maintenance, long service life, etc., because of its
convenience, husky, economic, practical, easy to clean, and many
other advantages, become the enterprise internal and factory and
factory of choice for short distance between the fixed point often
carry heavy transport.
| Technical parameters for Battery powered electric transfer carts KPX series | ||||||||||
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 | |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 | |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 | |
1. Load capacity, table size and rail gauge can be customized; | ||||||||||
Andvantages of Large-scale machinery handling equipment Electric transfer cart
High temperature and explosion proof;
The Dragged cable powered flat bed trailer for material transfer With simple structure and low price;
The hydraulic can be installed on the flat carts;
The Dragged cable powered flat bed trailer's using time is not limited;
The flat bed trailer for material transfer has no strict requirement on the rail’s construction;
Running on the straight railways or on the ‘S’ and arc-shaped railways.
Application
The series flat electric transfer cart can be suitable to be used in the bad environment, such as, high-temperature and anti-explosion condition. Compared with the KPX series, the using is not linited; Compared with KPD series, it is not so strict limitation for the construction of the railway. The load capacity is not limited and if the running distance is more than 50m, a cable arranger should be installed to arrange the cables, the runnimg distance of KPJ series can reach to 200m.
|
|
