Henan Remarkable Intelligent Technology Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | Remarkable |
| Model Number : | RWP |
| Certification : | CE, ISO |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 600 |
| Delivery Time : | 30-45 work days |
12 Tons Heavy Duty Automatic Transfer Cart Electromagnetic Brake Stepless Speed
The Battery Propelled Automatic Die Handling Transfer Cart is mainly used for mold transfer shifting in industrial production workshops and for mold change. The size and rated lifting capacity of the die handling transfer cart can be designed and manufactured according to the needs of users. The control mode wireless remote control device is optional and can also be automatically controlled. The speed of the die handling transfer cart can be selected by the inverter to control the speed. It can be equipped with an alarm device and an infrared sensor according to the actual working conditions to realize automatic parking of 2 meters for people to ensure the safety of the workshop.
The die handling transfer cart is a kind of track flat cart with the battery as the power source. It can be free from remote control when it is free from the constraints of cables. It is more convenient and safe to use and is suitable for long-distance rail transportation systems.

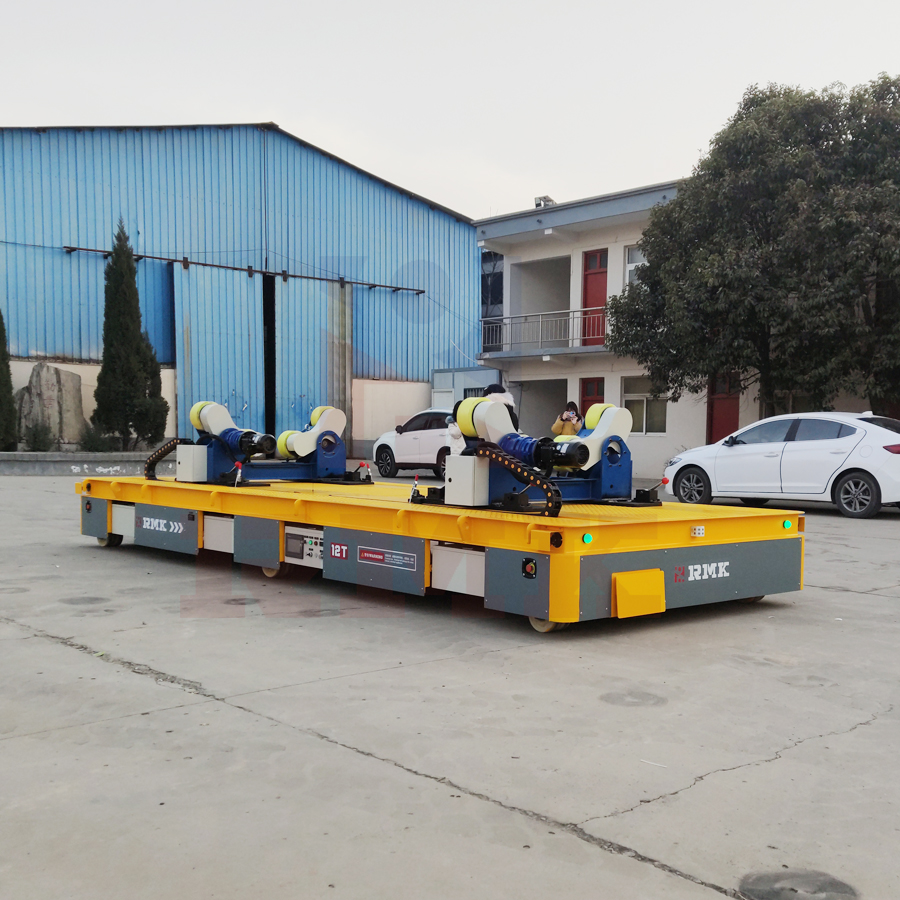

12 Tons Heavy Duty Automatic Transfer Cart Electromagnetic Brake Stepless Speed
Application of Electric Motorized Transfer Car
Our reliable motorized transfer car truck not only can transport all kinds of molds in dies shop, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
|
|
