Rail Mold Handling Coil Transfer Cart Warehouse Battery Motorized

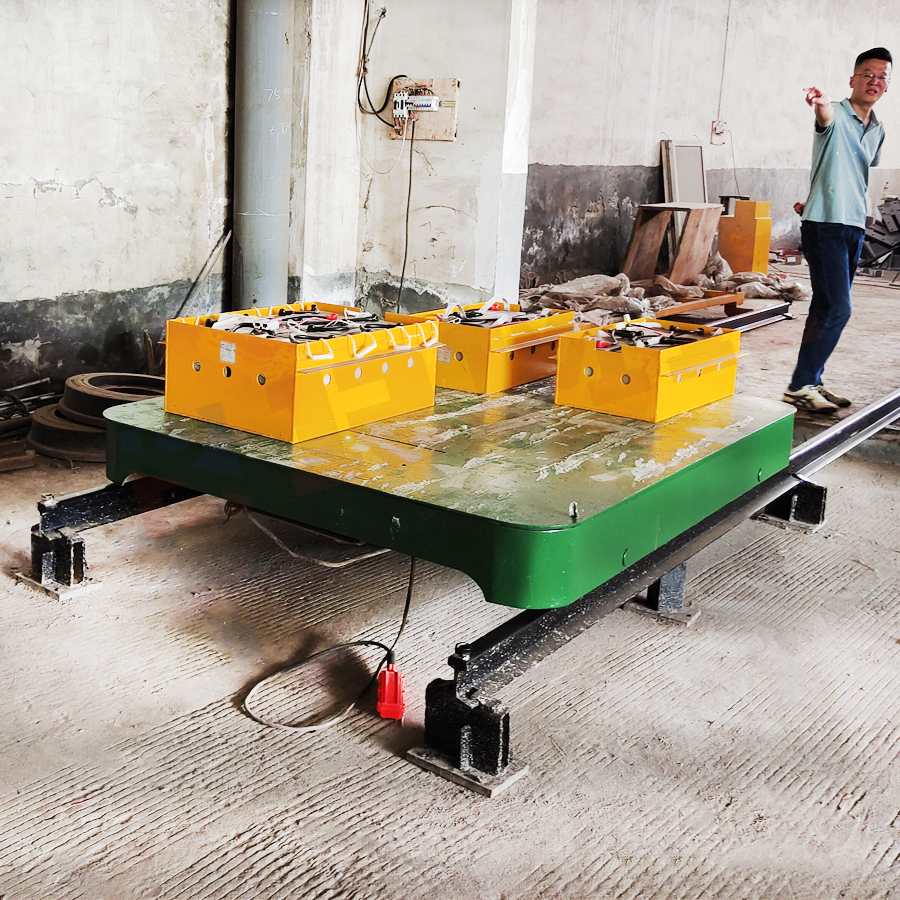

Kpx-10t electric flat car is an electric flat car powered by battery. It adopts DC traction motor. The electric flat car is equipped with battery. There is an intelligent charger matching with the battery on the ground. The whole vehicle relies on the battery to provide power to the brushless DC traction motor. The electrical control device controls the forward, backward, acceleration and deceleration of the DC brushless motor. Because there is no cable, it is safe and reliable, not afraid of scalding and smashing, does not hinder cross transportation, is easy to realize remote control and automation, and is very convenient for the transportation layout of the plant. Suitable for long-distance transportation. Its running distance is not limited and its requirements for track laying are not high. Compared with KPJ and KPD series flat cars, it has safety and mobility flexibility; It is suitable for low frequency and long-distance transportation. The battery needs regular maintenance, and the service life of the battery is generally about 2.5 years. And the use time is limited. Flat car operation is not limited by distance and is suitable for low frequency and long-distance transportation. However, the battery needs regular maintenance. The service life of the battery is generally about 2.5 years, and the service time is limited. Compared with KPJ and KPD series flat cars, it has safety and mobility flexibility; The requirements for track laying are not high. Kpx-10t electric flat car is easy to maintain; Long service life; The power supply consists of cable drum and cable arrangement system Motor: DC motor is brushless DC motor; DC motor has the advantage of low starting current The electric flat car with reducer can realize any speed Electrical appliances: PLC control can be realized; The control appliance consists of governor, contactor, etc Battery: the battery is maintenance free; The battery has the function of power display.
Rail Mold Handling Coil Transfer Cart Warehouse Battery Motorized
Henan Remarkable Intelligent Technology Co., Ltd is a professional
handling equipment company integrated intelligent R&D, design,
manufacturing, sales as well as after-sales service. It specializes
in producing electric transfer carts of various tonnages, handling
equipment accessories, intelligent crane and crane accessories with
professional design, development and manufacture of non-standard,
intelligent electric transfer carts and handling robots. According
to different power mode, the handling equipment products can be
divided into six series including low-voltage track-powered,
battery-powered, towline-powered, cable reel-powered,
safe-trolley-line powered, and unpowered traction.
| Technical parameters for Battery powered electric transfer carts KPX series | ||||||||||
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 | |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 | |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 | |
1. Load capacity, table size and rail gauge can be customized; | ||||||||||
|
|
