| Brand Name : | Remarkable |
| Model Number : | RWP-35T |
| Certification : | CE, ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability : | 300 sets per year |
| Delivery Time : | 50 days |

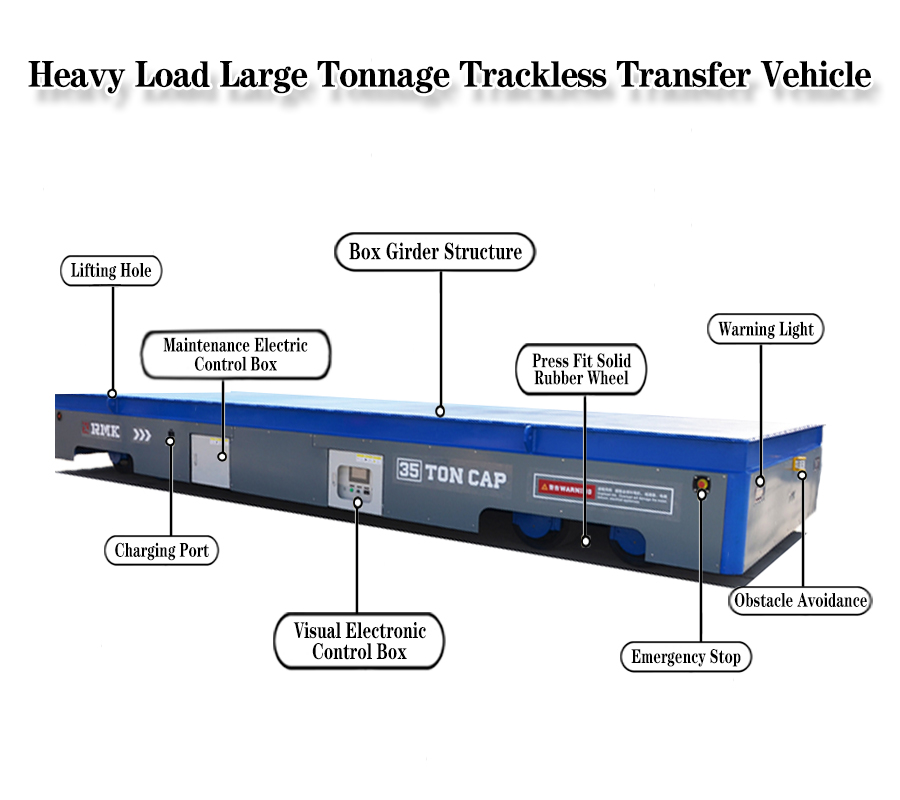

35 Tons Injection Molding Tool Transfer Carts Is Designed For Die And Mold Handling, It Is An Electric Transport Cart Which Can Be Powered By A Battery, Low Voltage Rail, Cable Drum, Towed Cable. There Are Two Types Of Electric Transfer Carts, Rail Guided And Freely Movable. Whether You Opt For A Rail-Guided Or A Freely Trackless Movable Solution, All Can Be Met With A Customized Solution.
Depending On The Size Of The Die And Mold, You Can Choose The Size And Load Capacity As Your Demands.
As A Cross-Over Vehicle In The Factory Area And Workshop, Can Not
Only Walk Straight Or Turn But Also Greatly Enhances The
Convenience Of Transportation Across Regions. The Technical
Difficulty Of The Material Transfer Trolley Is The Wheel Pressure
Problem Of The Hydraulic Steering Structure And The Polyurethane
Rubberized Wheel.
As The Car Is Used In Construction Sites To Transport Prefabricated
Slabs And Other Prefabricated Components, Considering The Use
Environment, We Have Designed Industrial Press Fit Solid Tire For
Customers. The Platform Of The Car Is Relatively Large, Which Is
Convenient For Customers To Use. Our Technology Department Adopts
Hydraulic Steering To Shorten The Turning Radius, Which Is
Convenient For Customers To Transfer Goods On Site.
Advantages Of The Injection Molding Tool Carts :
Safety And Flexibility;
High Efficiency And Stable Start;
Long Lifetime And Durable, At Least 20 Years Of A Lifetime;
Simple Structure;
Using Frequency;
Easy Maintenance And Operation
Environmental Protection
| Technical parameters for trackless electric transfer carts | |||||||
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure | ||||||
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground | |||||
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 | ||||||
| wheels base(mm) | 1500 | 1700 | 1800 | ||||
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop | ||||||
| control method for turning | control button | ||||||
| turning structure | mechanical | ||||||
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 | ||
| wheel material | ZG55+hydropur ture | ||||||
| running speed(m/min) | 0-20 | ||||||
| brake principle | electric magnetic brake | ||||||
| operation method | with wire or no wire | ||||||
| battery maintenance | free of maintenance | ||||||
| charger's installation | installed on cart | split-type | |||||
| radar control | 3-0.3m, automatic stop for obstacles | ||||||
| warning equipment | sound and light | ||||||
| other functions | turning light, night light and power display | ||||||
|
|
