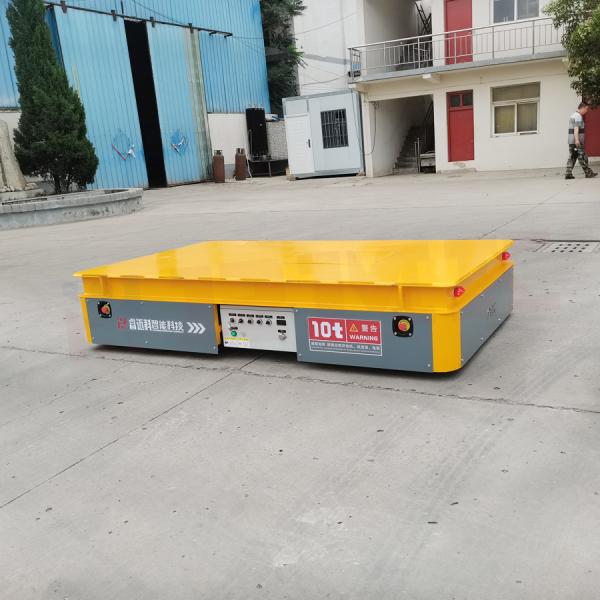

    Industrial 10T Material Transfer Cart Flexible Wireless Remote Control

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : RWP
    Certification : CE, ISO, SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600/sets
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    Industrial 10T Material Transfer Cart Flexible Wireless Remote Control

    Industrial 10T Material Transfer Cart Flexible Wireless Remote Control


    Remarkable trackless transport cart weighs from 1 ton to 500 tons. The heavy trackless transport cart is convenient for the manufacture of large machinery and equipment and the transportation of heavy materials such as concrete and molds. It is suitable for large production workshops, sites and outdoor sites. It does not need to lay tracks. It is more convenient and flexible to use, reduces production costs and improves work efficiency. The 1-10T light-weight trackless vehicle is more widely used. The light-weight trackless vehicle has a small body volume, and is more flexible than the large tonnage heavy-duty trackless trolley. It has high speed and can be used in a narrow space. It is suitable for material handling and transportation in various industries. The light-weight trackless vehicle is easier to realize high intelligence, and can customize the steering wheel system, lifting system, positioning system Intelligent AGV, such as wireless communication system, is favored by many manufacturers.


    In addition to meeting the most basic transportation requirements, RWP series electric flat car can also be customized according to the requirements of users to realize the functions of table lifting, rollover, explosion-proof, high temperature resistance and so on. Hydraulic and shear fork lifting, remake can provide a lifting range of 0-2m for selection.


    Technical parameters for trackless electric transfer carts
    Rated load(t)5101520304050150
    Impacted rated load(t)7.51522.530456075225
    Structure of framesteel plates welded, beam structure
    Max. wheel load(t)2.84.34.85.67.7101227
    Ground requirementcement floorsteel plate ground
    Table size(mm)3000×
    2000
    3600×
    2000
    4000×
    2200
    4500×
    2200
    5000×
    2200
    5500×
    2300
    6000×
    2300
    10000×
    3000
    Height of the whole cart(mm)4505306006006507007001200
    Ground clearanc(mm)5075
    Turning radius(mm)250131013401390143014801520110001
    Turning typeturning while driving with no stop
    Control method for turningcontrol button
    Turning structuremechanical
    Wheel materialZG55+hydropur ture
    Running speed(m/min)0-150-12
    Brake principleelectric magnetic brake
    Operation methodwith wire or no wire
    Battery modelD-250x24D-33x24D-400x24D-440x24D-250x36D-330x36D-440x36D-600x36
    Battery maintenancefree of maintenance
    Charger's installationinstalled on cartsplit-type

    Advantages of Industrial 10T Material Transfer Cart Flexible Wireless Remote Control:


    1. Flexible and stable operation.

    2. High intelligence and automation.

    3. Modular design, few parts and easy maintenance.

    4. The automatic obstacle avoidance system stops when encountering obstacles to ensure safety.

    5. Customized lifting table.

    6. It can move forward, backward, rotate 360 degrees, and turn while moving.

    7. No track constraints, good flexibility, remote control to any area.
