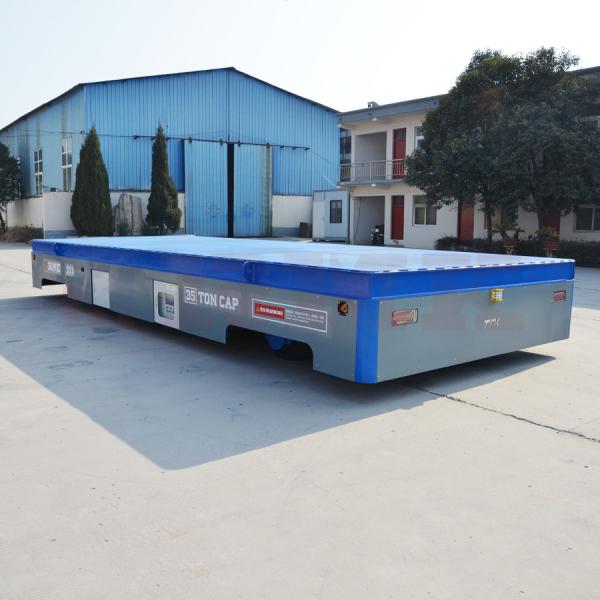

Self Propelled Electric Warehouse Transfer Cart 35T Hydraulic Steering
Self Propelled Electric Warehouse Transfer Cart 35T Hydraulic Steering Is Designed For Transporting Heavy Cargoes Or Equipment From One Place To Another In Factory. It Can Be Used Indoor Or Outdoor. The Fields Include Metallurgy, Foundry, New Factory Construction And Shipbuilding And So On. With Different Styles And Standard Capacities Up To 500 Tons, We Have The Solution You Need And Each Style Can Be Designed For Your Specific Application. Battery Operated Motorized Trolley Transfer Cart Main Contains RWP, KPD, KPJ, KPT And KPX, If You Are Unsure As To What Type Of Transfer Cart Will Best Serve Your Needs. Spending A Few Minutes Now To Discuss With Us About Your Needs. According To Your Business Needs, We Will Provides You With The Most Professional Products ,Our Products Are Found In All Sectors, With Excellent Craftsmanship And Technical Team, So We Produce Transfer Cart Applications In Various Industries Have Been Widely Used.
| Technical parameters for trackless electric transfer carts | |||||||
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure | ||||||
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground | |||||
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 | ||||||
| wheels base(mm) | 1500 | 1700 | 1800 | ||||
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop | ||||||
| control method for turning | control button | ||||||
| turning structure | mechanical | ||||||
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 | ||
| wheel material | ZG55+hydropur ture | ||||||
| running speed(m/min) | 0-20 | ||||||
| brake principle | electric magnetic brake | ||||||
| operation method | with wire or no wire | ||||||
| battery maintenance | free of maintenance | ||||||
| charger's installation | installed on cart | split-type | |||||
| radar control | 3-0.3m, automatic stop for obstacles | ||||||
| warning equipment | sound and light | ||||||
| other functions | turning light, night light and power display | ||||||
Advantages Of The Injection Molding Tool Carts :
Safety And Flexibility;
High Efficiency And Stable Start;
Long Lifetime And Durable, At Least 20 Years Of A Lifetime;
Simple Structure;
Using Frequency;
Easy Maintenance And Operation
Environmental Protection
|
|
