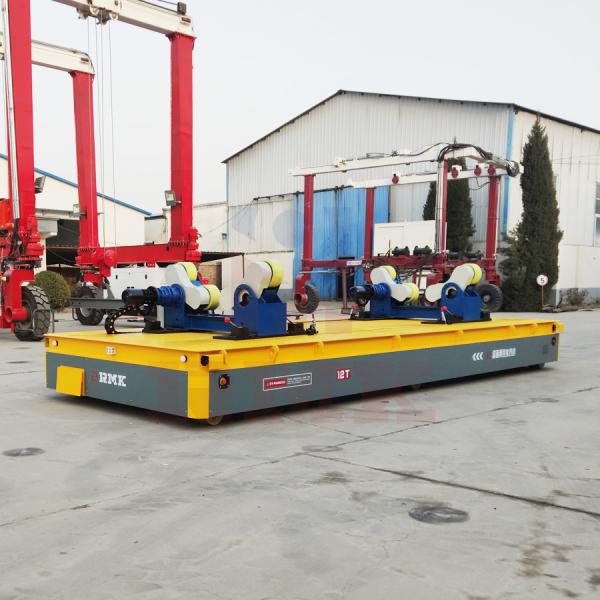

    Free Move Material Transfer Cart Battery Operated Hydraulic Steering

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : RWP, AGV, KPX
    Certification : CE, SGS, ISO
    Price : Price negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600/years
    Delivery Time : 40-45 work days
    • Product Details
    • Company Profile

    Free Move Material Transfer Cart Battery Operated Hydraulic Steering


    Free Move Material Transfer Cart Battery Operated Hydraulic Steering


    Because of its obvious advantages, trackless transfer carts will be more widely used in factories and workshops in the future. Henan remarkable Intelligent Technology Co., Ltd. is a professional manufacturer of electric rail cars, with a professional group. It is a manufacturer of electric flat cars integrating R&D, production, sales and after-sales. We can provide you with a series of solutions suitable for you.


    There are two steering systems for trackless transfer carts: hydraulic steering and Steering wheel steering. Remarkable steering wheel system trackless transfer cart is also named vertical and horizontal running trackless car. The trackless transfer trolley consists of vehicle body, driving system (composed of battery, motor and reducer), electrical system, steering wheel system and safety detection system five parts.The transfer cart is very flexible, easy to operate, low noise, and it can automatically stop when meeting people and objects, which not only improves work efficiency, but also avoids security risks.


    Technical parameters for trackless electric transfer carts
    Rated load(t)5101520304050150
    Impacted rated loa(t)7.51522.530456075225
    Structure of framesteel plates welded, beam structure
    Max. wheel load(t)2.84.34.85.67.7101227
    Ground requirementcement floorsteel plate ground
    Table size(mm)3000×
    2000
    3600×
    2000
    4000×
    2200
    4500×
    2200
    5000×
    2200
    5500×
    2300
    6000×
    2300
    10000×
    3000
    Height of the whole cart(mm)4505306006006507007001200
    Ground clearanc(mm)5075
    Turning radius(mm)250131013401390143014801520110001
    Turning typeturning while driving with no stop
    Control method for turningcontrol button
    Turning structuremechanical
    Wheel materialZG55+hydropur ture
    Running speed(m/min)0-150-12
    Brake principleelectric magnetic brake
    Operation methodwith wire or no wire
    Battery modelD-250x24D-33x24D-400x24D-440x24D-250x36D-330x36D-440x36D-600x36
    Battery maintenancefree of maintenance
    Charger's installationinstalled on cartsplit-type

    Remarkable Material transportation free move battery transfer trolley roller conveyor is widely used in aerospace, military industry, machinery manufacturing, automobile industry, heavy industry manufacturing, mold manufacturing and various fields. In addition to the most basic transportation requirements, Remarkable RWP series electric trackless vehicles can also customize the size, operating system, power supply system, explosion-proof system, lifting system, etc. According to the user's requirements to realize the lifting and other functions of the car table. When customers transport materials, if they need special shape transfer vehicles, we can also install roller supports on the vehicles according to the materials transported, so that it can adapt to automatic production workshops or flow production lines.



    Our beam:


    Longitudinal beam adopts whole plate blanking form an integrated body and moulding, low utilization rate of steel, high waste and high cost, but middle without welding that makes the girder high strength, light weight, stronger loading ability and longer service life.

    Tailor welded beam in the welding process can bring reduction of steel strength, annealing, variant, welding spot strength is much lower than steel strength itself.


    Give us a call today at 86-0373 3031116 or click here for more information for a free quote on any size transfer cart. If you can think it then we can manufacture it; transfer cars for any application.
