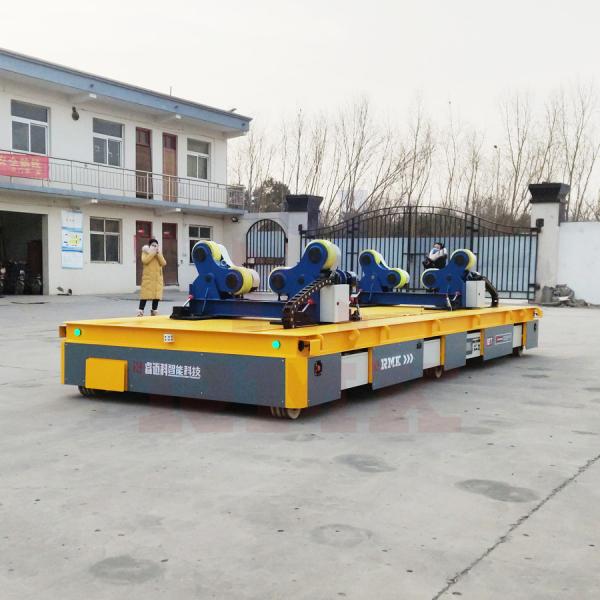

Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart

Henan Remarkable Intelligent Technology Co., Ltd.
Contact Now
    Buy cheap Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart from wholesalers

    Buy cheap Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart from wholesalers
    • Buy cheap Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart from wholesalers
    • Buy cheap Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart from wholesalers
    • Buy cheap Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart from wholesalers
    • Buy cheap Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart from wholesalers

    Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : RWP
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart


    Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart


    Now with the continuous development of each industry progress, demand for electric flat car factory also in unceasing increase, in addition to this, a lot of high degree of automation of enterprise to the requirement of electric flat car is also more and more diversified, especially long-distance transport, transport more flexible, more don't have to set aside a flat car running routes, then there is the problem of how to save a wide range of laying track, needle For these needs, the trackless electric flat car began to gain popularity. Trackless electric flat car is no special track electric flat car, mainly through the battery power supply, and the configuration is maintenance-free battery, can reduce the daily maintenance of flat car. Trackless electric flat car without cables and fixed orbit, will be able to turn free, and specially designed configuration turning radius is small, even can be achieved in circles, turning process is extremely flexible, the working area layout on surrounding more small, in view of the uneven ground accordingly adjusted. The above is the battery trolley description. Trolley car in the future in the factory workshop and other places need to transport, will have a greater use of the place.


    Hand Operated Material Handling Trolley , 12T Automatic Transfer Cart


    Technical parameters for electric transfer carts
    1rated load(t)5101520304050150
    2impacted rated load(t)7.51522.530456075225
    3structure of framesteel plates welded, beam structure
    4max. wheel load(t)2.84.34.85.67.7101227
    5ground requirementcement floorsteel plate ground
    6table size(mm)3000×20003600×20004000×22004500×22005000×22005500×2300

    6000×

    2300

    10000×

    3000

    7height of the whole cart(mm)4505306006006507007001200
    8ground clearance(mm)5075
    9wheels base(mm)1500170018002000
    10axles distance(mm)250031003400390043004800520010000
    11turning radius(mm)250131013401390143014801520110001
    12turning typeturning while driving with no stop
    13control method for turningcontrol button
    14turning structuremechanical
    15motor power(Kw)3.556710121515
    16wheel diameter(mm)Ф300 x 4Ф350 x 4Ф400 x 4Ф400 x 6Ф500 x 6Ф600 x 8
    21battery modelD-250 x 24D-33 x 24D-400 x 24D-440 x 24D-250 x 36D-330 x 36D-440 x 36D-600 x 36
    22battery maintenancefree of maintenance
    23charger's installationinstalled on cartsplit-type
    24charger functionautomatic charging
    25radar control3-0.3m, automatic stop for obstacles
    26warning equipmentsound and light
    27other functionsturning light, night light and power display
