| Brand Name : | Remarkable |
| Model Number : | RWP-50T |
| Certification : | CE, ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T, D/A, L/C, D/P, Western Union, MoneyGram |
| Supply Ability : | 50 sets per month |
| Delivery Time : | 45-60 days |

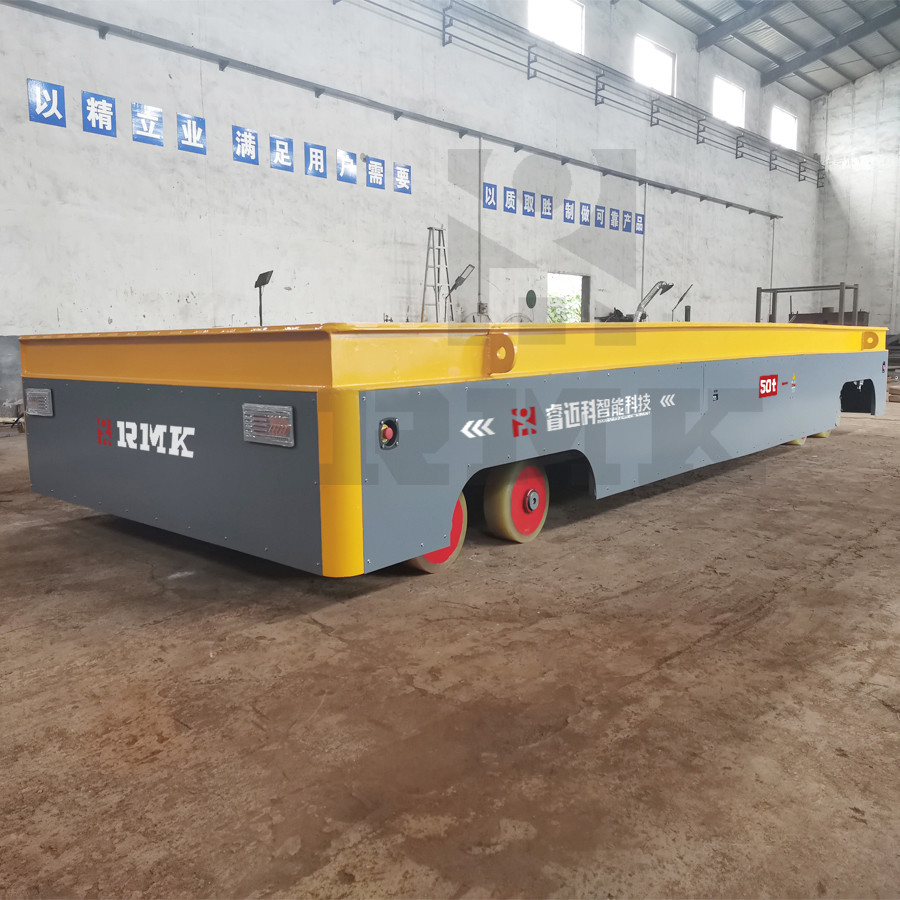

Steel Beam Material Transfer Cart 50 Tons Heavy Load Industry
Metallurgy
The 50 Tons Heavy Load Steel Beam Material Transfer Cart Is An
Alternative Transfer Cart With The High Capacity And Quality, Which
Has Been Popular Product In Material Handling Field. It Not Only
Overcomes Manyinconveniences Of Rail Transfer Carts And Cranes Due
To Limited Working Area, But Dramatically Reduce The Material
Handling Requirements Of Cranes And Forklift While Providing Quick,
Safe Andsmooth Movement Of Materials Or Objects Through
Manufacturing Facilities.
The Steerable Transfer Carts Can Not Only Finish Free-Turning
Without The Rail In The Workshop, But Also Run On The Straight
Line. Therefore, It Does Not Affect Traffic, Does Not Hinder
Production, Andthe Transfer Cart Is More Flexible, The Operation Is
More Humanized.
Henan Remarkable Trackless Electric Flat Car Is A Wheeled Handling Equipment That Can Be Steered At Will By Manual Control. Its Power Supply Mode Is Battery Power Supply. The Driving Wheels And Load-Bearing Wheels Can Be Selected From High-Strength Polyurethane Rubber Solid Tires Or Pneumatic Tires. Limited By Space And Ground, The Walking Direction And Route Can Be Changed At Any Time, Which Is Very Suitable For Use In Occasions Where The Running Route Is Not Fixed.
| Technical parameters for trackless electric transfer carts | |||||||
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure | ||||||
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground | |||||
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 | ||||||
| wheels base(mm) | 1500 | 1700 | 1800 | ||||
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop | ||||||
| control method for turning | control button | ||||||
| turning structure | mechanical | ||||||
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 | ||
| wheel material | ZG55+hydropur ture | ||||||
| running speed(m/min) | 0-20 | ||||||
| brake principle | electric magnetic brake | ||||||
| operation method | with wire or no wire | ||||||
| battery maintenance | free of maintenance | ||||||
| charger's installation | installed on cart | split-type | |||||
| radar control | 3-0.3m, automatic stop for obstacles | ||||||
| warning equipment | sound and light | ||||||
| other functions | turning light, night light and power display | ||||||
|
|
