Brand Name : | Remarkable |
Model Number : | RWP-5T |
Certification : | CE, ISO9001 |
Price : | Negotiable |
Payment Terms : | T/T, L/C, D/A, D/P, , Western Union, MoneyGram |
Supply Ability : | 500 sets per year |
Delivery Time : | 30-45 work days |

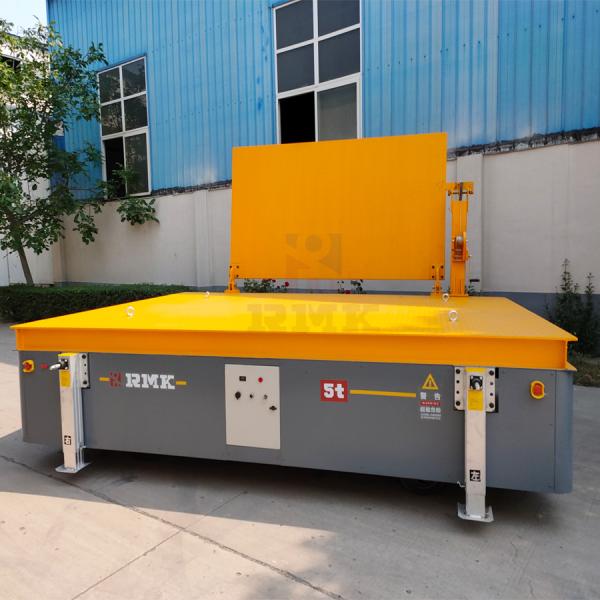

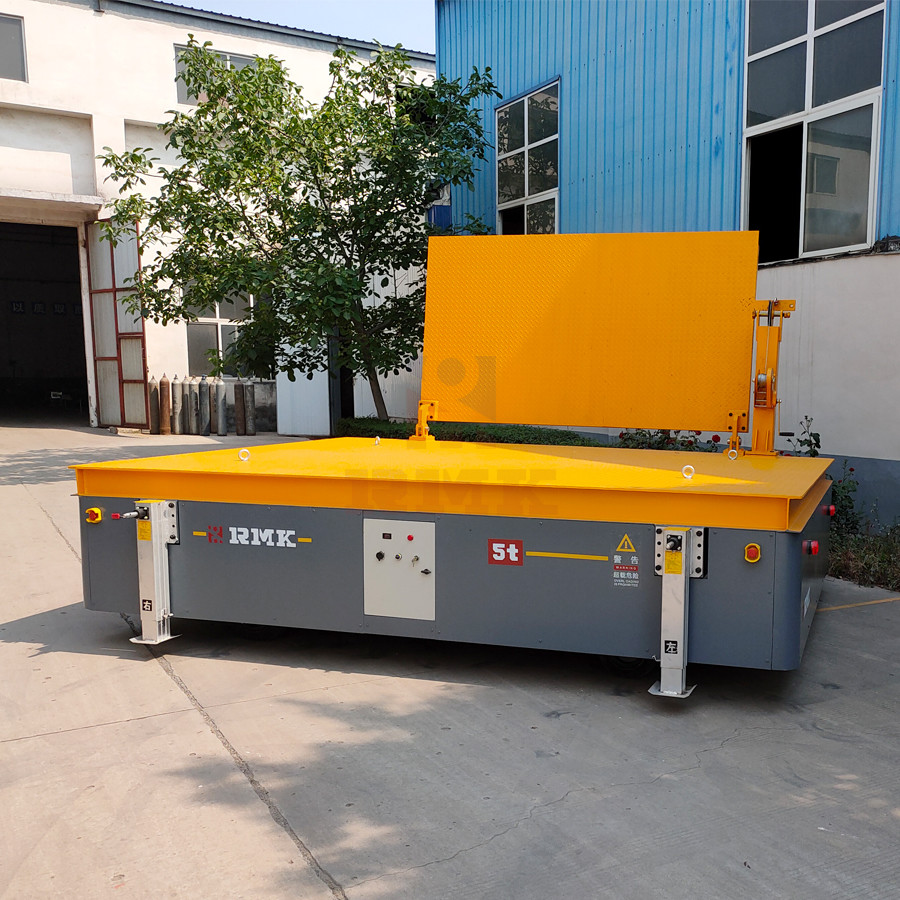

The Running Route Of The 5 Tons Electric Material Transfer Trolley Is Not Fixed, It Can Be Turned 360° Freely And Is Flexible And Stable. It Can Be Transported Between Any Workshops When The Ground Is Flat And There Is No Large Slope. And The Platform Has Strong Weight And High Safety. The Places Of Use Are: Production And Processing Workshops, Metallurgical Casting, Mold Handling, Steel Structures, Prefabricated Parts, Etc.. You Can Choose The Appropriate Handling Method According To The Transportation Distance, Working Environment, Etc..
Technical parameters for electric transfer carts | |||||||||
1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
3 | structure of frame | steel plates welded, beam structure | |||||||
4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
5 | ground requirement | cement floor | steel plate ground | ||||||
6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
8 | ground clearance(mm) | 50 | 75 | ||||||
9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
12 | turning type | turning while driving with no stop | |||||||
13 | control method for turning | control button | |||||||
14 | turning structure | mechanical | |||||||
15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
22 | battery maintenance | free of maintenance | |||||||
23 | charger's installation | installed on cart | split-type | ||||||
24 | charger function | automatic charging | |||||||
25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
26 | warning equipment | sound and light | |||||||
27 | other functions | turning light, night light and power display |
![]() |
