    10 Tons DC Motor Material Rail Transfer Trolley Electric Remote Control

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : KPX-10T
    Certification : CE, ISO9001
    Price : Negotiable
    Payment Terms : T/T, D/A, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 50 sets per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    10 Tons DC Motor Material Rail Transfer Trolley Electric Remote Control


    10 Tons DC Motor Material Rail Transfer Trolley Electric Remote Control

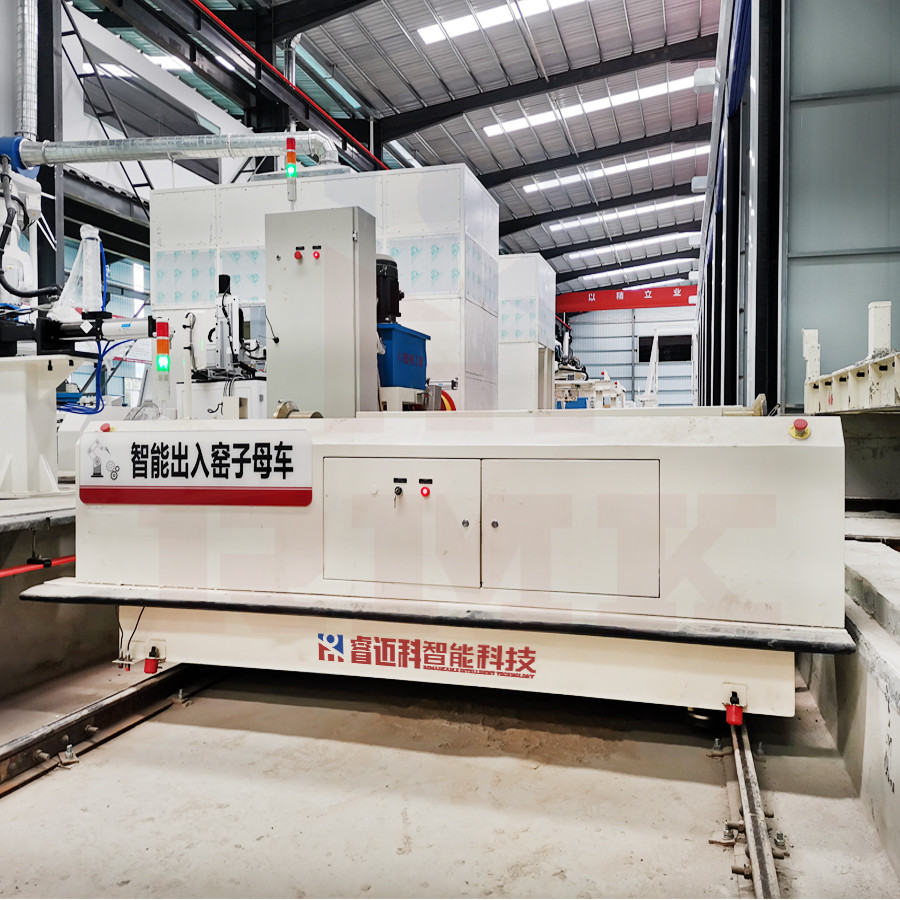

    The Design Of 10 Tons Electric Materials Ferry Railway Transfer Car Can Mainly Meet The Material Transfer Requirements Of Vertical And Horizontal Rails, Whether It Is Transportation Production Equipment Or Material Transfer. The Design Of This Vehicle Solves The Docking Of Material Production Processes And Production Molds. Due To The Narrow Transfer Space At The Customer's Site, The Trackless Vehicle Can Not Be Used To Turn And Transport Materials Or Molds In The Workshop, So This Vertical And Horizontal Track Material Transfer Vehicle Can Only Be Selected To Meet The Needs Of The Customer's Production Process.


    10 Tons DC Motor Material Rail Transfer Trolley Electric Remote Control10 Tons DC Motor Material Rail Transfer Trolley Electric Remote Control

    Technical parameters for Cable reel powered electric transfer carts KPJ series
    ModelKPJ-6tKPJ-10tKPJ-16tKPJ-25tKPJ-40tKPJ-63tKPJ-100tKPJ-160tKPJ-200t
    Rated load (t)61016254063100160200
    Countertop sizeLength360036004000450050005600630080008200
    (mm)Width200020002200220025002500280028003000
    Height55055060065070085090011501250
    Speed(m/min)303030302525202018
    Wheel base A(mm)200022002200250028003200360050005000
    Track medial distance C(mm)143514351435143516351735185020002000
    Wheel diameter(mm)300300400400500600700700700
    Bottom clearance(mm)505050606060607070
    Motor model / powerYZ132M1-6YZ132M2-6YZ160M1-6YZ160M2-6YZ160L-6YZ160M2-6YZ160L-6
    (Kw)2.23.75.57.5112×7.52×11
    Power modeCable drumAC380VAC380VAC380V
    3×2.5+1×1.53×4+1×2.53×6+1×4
    Recommended track model24kg/m24kg/m38kg/m43kg/mQU80QU100
    Number of wheels48
    Maximum wheel Pressure (t)1.913.214.877.511.516.927.622.828.5
    Reference weight (t)3.43.724.268.511.415.225.531.5

    Uses of heavy duty motorized industrial transfer flat carts:

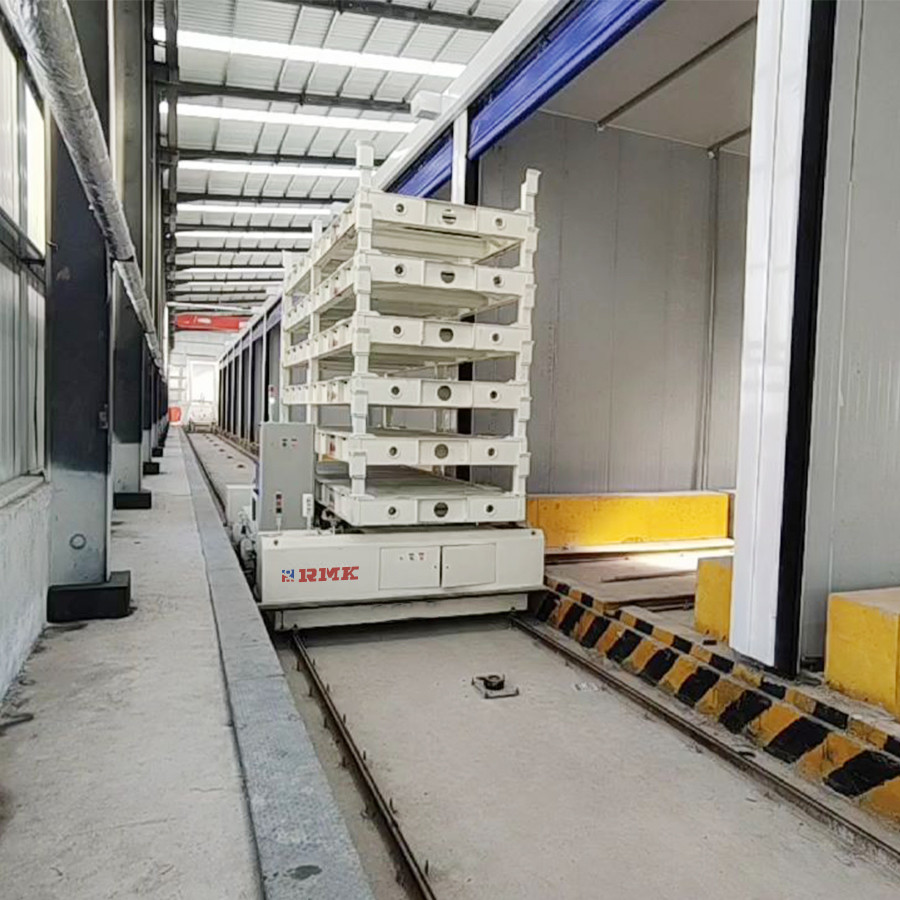

    For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
