    Modern Workshop Material Handling Trolley , 25T Motorized Heavy Duty Transfer Cart

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : RWP-3T
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, , Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

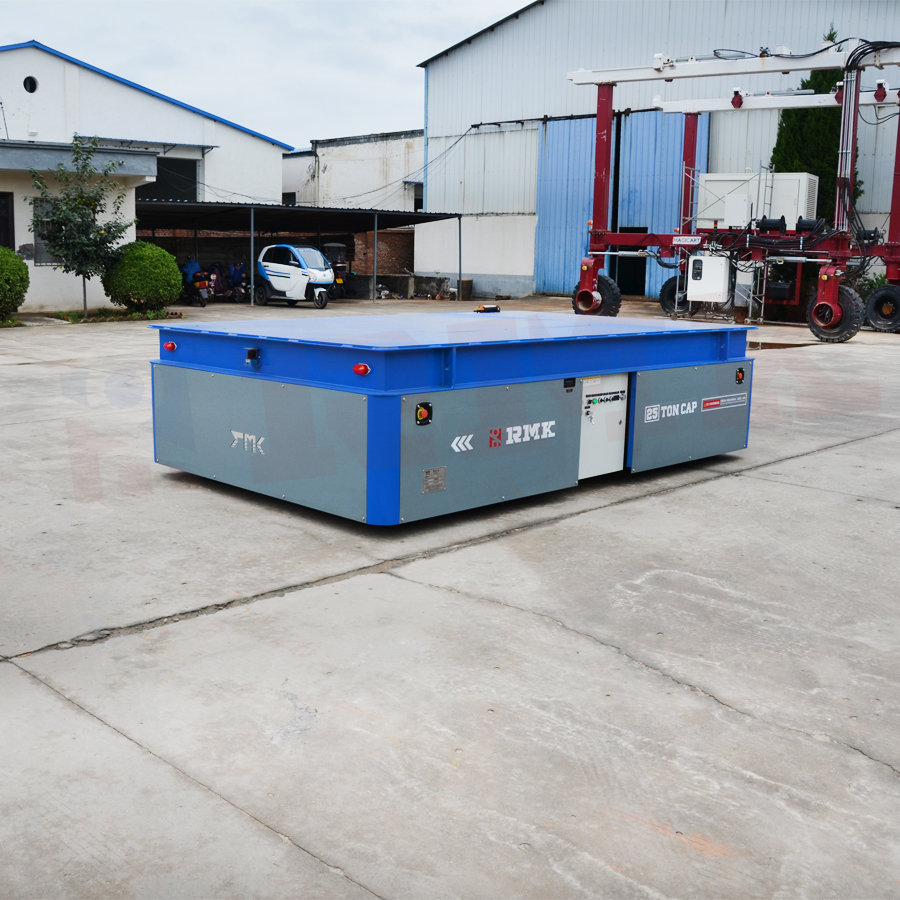

    Modern Workshop Material Handling Trolley , 25T Motorized Heavy Duty Transfer Cart


    Modern Workshop Material Handling Trolley , 25T Motorized Heavy Duty Transfer Cart


    Remarkable heavy duty die transfer cart are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
    Our Die Transfer Cars operate on rail and travel along side the press and move from die storage to the press. These units operate on either battery or AC power supply. All units are designed to both push and pull a die from the press and can be equipped with a wide range of "lift" features.
    Customized---Die Transfer Cart
    Mechanical Options Include:
    ─ Deck Railings
    ─ Wood Decking Material
    ─ Screw-Jack Lift Deck
    ─ Paint Color (customer specified)
    ─ Rail Guides
    ─ Running on Floor or Rail
    ─ End Stops
    ─ Urethane Wheels (not available on guided carts)
    ─ Live Axle
    Custormer visit---Die Transfer Cart
    We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.




    Case:

    Remarkable exported the 3-ton intelligent lifting trackless truck of LTL transformers (PVT) Ltd, a well-known transformer company in Sri Lanka, which has been highly praised by customers. It is convenient to operate and use in work and greatly improves productivity. Remarkable ordered another 25 ton heavy-duty trackless truck from us. The die trackless transfer cart is also equipped with hydraulic lifting table and automatic obstacle avoidance functions, It is used for the transfer of transformers, power equipment and other materials in its production workshop.

    Technical Specifications

    No.ItemSpecifications
    1Model 型号RWP-25T
    2Rated Loading capacity(T)额定载重25
    3Max impact load (T) 最大冲击载荷30
    4Table size(mm) 台面尺寸3500*2200 (L*W)
    5Cart height(mm)台面高度900
    6Ground clearance(mm)离地间隙60
    7Ground type地面类型Cement floor, Epoxy floor, Asphalt floor 水泥地面,环氧地面,柏油路
    8Climbing slope爬坡No more than 2 degrees
    9Operation method操作方式Wireless remote control & Hand operate pendant 无线遥控器,随车手柄
    10Traveling speed(m/min)运行速度0-20 (Stepless speed regulation) 无极调速
    11Motor Power (KW)电机功率4KW *2
    12Wheel material 车轮材质ZG55+Polyurethane coated rubber wheel 聚氨酯包胶轮
    13Wheel quantity车轮数量4
    14Brake mode刹车方式Electromagnetic brake 电磁制动器
    15Power supply供电方式Maintenance free battery 免维护蓄电池
    16Safety device 安装装置Audible and visual alarm lamp and emergency stop button, Laser obstacle avoidance 声光报警灯,急停按钮,激光避障装置
    17Color 车体颜色Blue+ gray 蓝+灰色
    18Steering Gear 转弯机构Differential steering 差速转向
    19Electronic Control Mode of Turning 转弯电控控制方式Electric button control电器按钮控制
    20Adjustment of floor flatness地面平整调节

    Mechanical automatic regulation

    机械自动调节

    21Battery capacity电池容量260Ah
    22Battery voltage电池电压48V
    23Battery working time电池工作时长Can continually work 3 hours after full charge 充满电后使用3个小时
    24Battery charging time电池充电时长About 6-7 hours 6-7小时
    25Battery charger function充电机功能Automatic charging 智能充电
    26Charger install type充电机安装形式Split-type 分体式
    27Other functions 其他功能Equip with turning light ,night light,battery display, lifting holes, etc.配置转向灯,夜灯,吊装孔等
    28

    Move Way运行方式

    Forward,backward and rotate 360 degrees ,turning while driving with no stop 前进后退,360度转弯,无间断边走边转弯
    29Battery Charger充电机Output voltage 48V 50A (Input voltage is 220V, 50 Hz) 输出电压48V, 50A, 输入电压220V,50Hz
    30Flat car’s protection 平车保护Overvoltage, undervoltage, overcurrent protection etc过压,欠压,过流保护
    31Lifting Type 升降类型Hydraulic Lift and Whole Table Lift 整个车台面液压升降
    32Lifting Height 升降高度150mm
