Henan Remarkable Intelligent Technology Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | Remarkable |
| Model Number : | RWP |
| Certification : | CE, ISO |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 600 |
| Delivery Time : | 30-45 work days |
How to choose the handling and transfer equipment in the enterprise factory, whether to choose the fuel oil equipment with strong power or the equipment with environmental protection. The track flat car manufacturer will answer for you. Of course, the use frequency and time of fuel oil equipment are not limited, but it has a great impact on the ambient air. At present, environmental friendly electric handling equipment can also be used for a long time. Of course, several groups of standby power supplies are required to be used alternately. The selection of handling and transfer operation equipment shall be based on the operation mode of working conditions and environment. Due to the different movement modes of handling and transfer, the equipment used will also be different. When carrying out horizontal transportation and transfer operations on the site, the equipment that can be selected include light and heavy trucks, free tractors, manpower carts and other transportation equipment. The vertical handling and transfer operation equipment can be professional lifting and transportation equipment such as hoist, hoist, crane and industry.

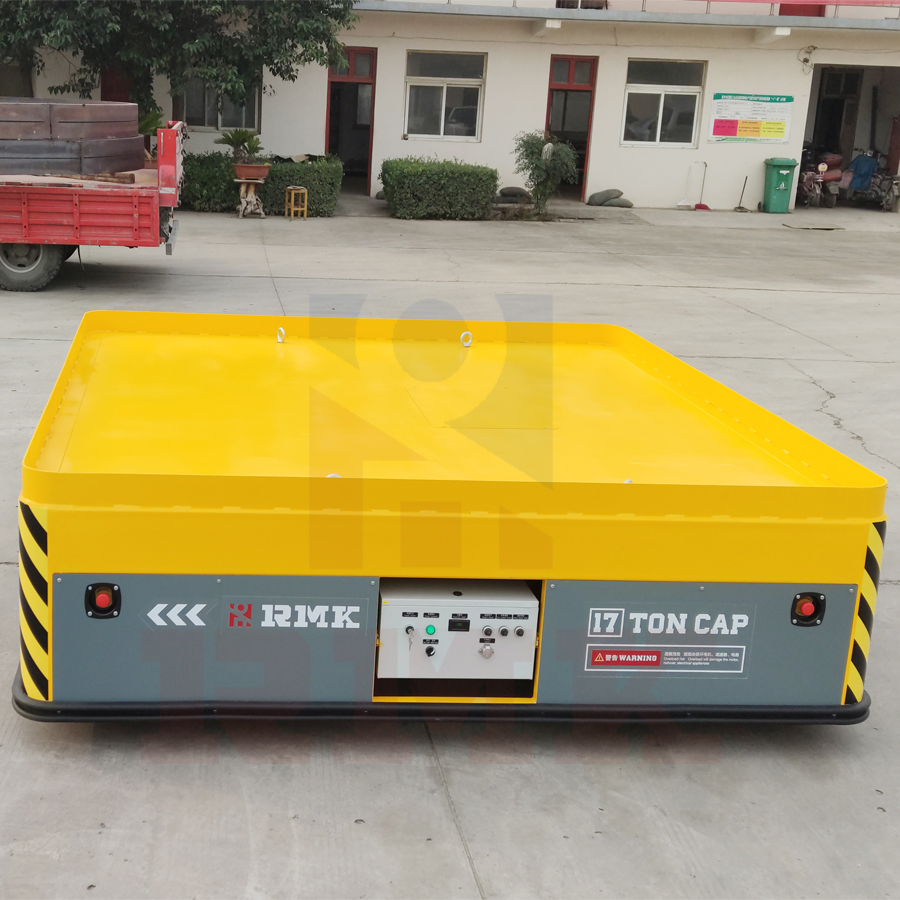

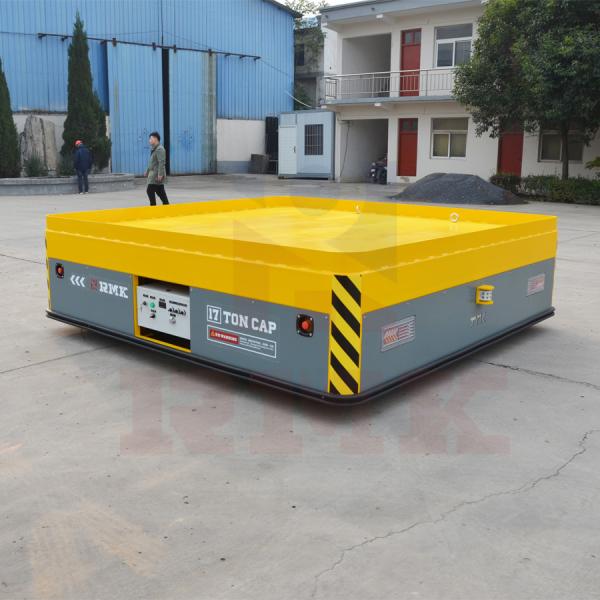

17 Tons Battery Powered Steerable Die Transfer Cart Electromagnetic Brake
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
Henan Remarkable Intelligent Technology Co., Ltd is a professional handling equipment company integrated
intelligent R&D, design, manufacturing, sales as well as
after-sales service. It specializes in producing electric transfer
carts of various tonnages, handling equipment accessories,
intelligent crane and crane accessories with professional design,
development and manufacture of non-standard, intelligent electric
transfer carts and handling robots. According to different power
mode, the handling equipment products can be divided into six
series including low-voltage track-powered, battery-powered,
towline-powered, cable reel-powered, safe-trolley-line powered, and
unpowered traction.
|
|
