    Steel Plant Material Transfer Trolley 50 Tons Steerable Electric Remote Control

    Ask Lasest Price
    Brand Name : Remarkabke
    Model Number : RWP-50T
    Certification : CE, ISO9001
    Price : 6500USD
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 400 sets per year
    Delivery Time : 50 days
    • Product Details
    • Company Profile

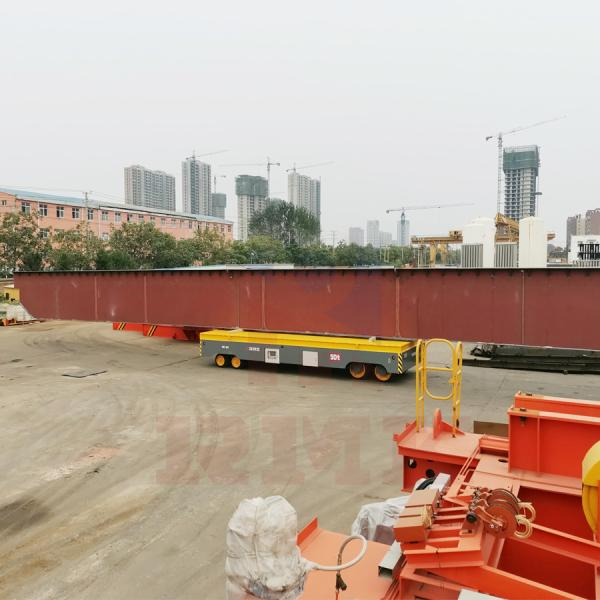

    Steel Plant Material Transfer Trolley 50 Tons Steerable Electric Remote Control


    Steel Plant Material Transfer Trolley 50 Tons Steerable Electric Remote Control


    The 50 Tons Steerable Motorized Transfer Car Is An Alternative Transfer Cart With The High Capacity And Quality, Which Has Been Popular Product In Material Handling Field. It Not Only Overcomes Manyinconveniences Of Rail Transfer Carts And Cranes Due To Limited Working Area, But Dramatically Reduce The Material Handling Requirements Of Cranes And Forklift While Providing Quick, Safe Andsmooth Movement Of Materials Or Objects Through Manufacturing Facilities.


    The Steerable Transfer Carts Can Not Only Finish Free-Turning Without The Rail In The Workshop, But Also Run On The Straight Line. Therefore, It Does Not Affect Traffic, Does Not Hinder Production, Andthe Transfer Cart Is More Flexible, The Operation Is More Humanized.

    Steel Plant Material Transfer Trolley 50 Tons Steerable Electric Remote Control


    Advantages of trackless transfer car:


    The trackless transfer car can be used in many occasions, such as explosive, high temperature, ferry, etc.

    DC motor, smooth start, large starting torque, small impact on reducer, low voltage, long life.


    This kind of trackless transfer car is battery-powered, so it can travel freely without restrictions after it is fully charged. The service life of the car can be as long as 15 years. The battery-powered trackless transport trolley is suitable for various occasions, such as industries (steel mills, steel products such as steel structures, steel pipes, billets, ladles and coils) are transferred from one location to another. One location); Paper roll factory: transfer paper roll painting workshop: transfer the workpiece to the painting room) other industries: shipbuilding, quarry, warehouse, etc.



    Technical parameters for trackless electric transfer carts
    rated load(t)5101520304050
    impacted rated load(t)7.51522.530456075
    structure of framesteel plates welded, beam structure
    max. wheel load(t)2.84.34.85.67.71012
    ground requirementcement floorsteel plate ground
    table size(mm)3000×20003600×20004000×22004500×22005000×22005500×23006000×2300
    height of the whole cart(mm)450530600600650700700
    ground clearance(mm)50
    wheels base(mm)150017001800
    axles distance(mm)2500310034003900430048005200
    turning radius(mm)2501310134013901430148015201
    turning typeturning while driving with no stop
    control method for turningcontrol button
    turning structuremechanical
    motor power(Kw)3.5567101215
    wheel diameter(mm)300 x 4350 x 4400 x 4400 x 6500 x 6
    wheel materialZG55+hydropur ture
    running speed(m/min)0-20
    brake principleelectric magnetic brake
    operation methodwith wire or no wire
    battery maintenancefree of maintenance
    charger's installationinstalled on cartsplit-type
    radar control3-0.3m, automatic stop for obstacles
    warning equipmentsound and light
    other functionsturning light, night light and power display
