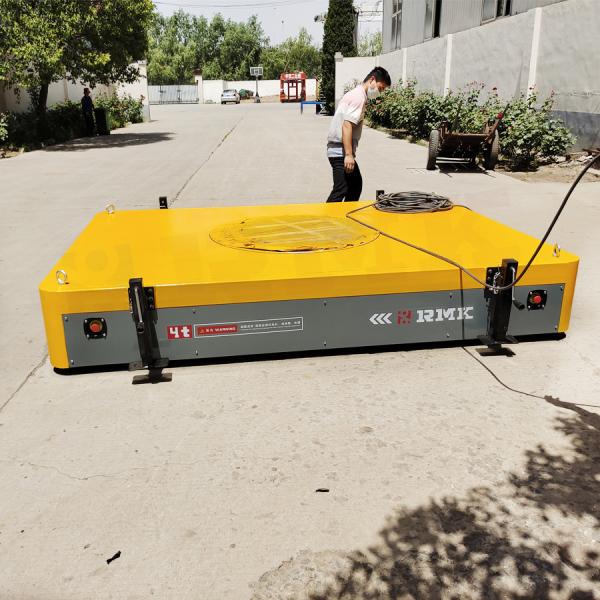

10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car

Henan Remarkable Intelligent Technology Co., Ltd.
Contact Now
    Buy cheap 10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car from wholesalers

    Buy cheap 10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car from wholesalers
    • Buy cheap 10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car from wholesalers
    • Buy cheap 10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car from wholesalers
    • Buy cheap 10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car from wholesalers
    • Buy cheap 10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car from wholesalers

    10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : RWP
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car

    10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car


    It is used in the fields of automobile production, ship manufacturing, die stamping, steel allocation, transportation and assembly of large machinery and equipment. It is used for cross transportation in multiple workshops. It is more convenient than rail flat car and can greatly increase work efficiency. The frame is made of steel plate, the electric flat car table can be laid with anti-skid rubber pad, and the running speed can be adjusted steplessly. Operating system: onboard handle + wireless remote control, table size can be customized according to customer requirements. The heavy trackless electric flat car can turn flexibly and has forward, backward, left and right buttons, speed regulation button, emergency stop button, abnormal light indication, power on light indication, authority key and other control buttons. With the advantages of simple operation, smooth turning and easy maintenance, trackless electric flat car will win the favor of many enterprises and manufacturers.

    10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car


    Technical parameters for electric transfer carts
    1rated load(t)5101520304050150
    2impacted rated load(t)7.51522.530456075225
    3structure of framesteel plates welded, beam structure
    4max. wheel load(t)2.84.34.85.67.7101227
    5ground requirementcement floorsteel plate ground
    6table size(mm)3000×20003600×20004000×22004500×22005000×22005500×2300

    6000×

    2300

    10000×

    3000

    7height of the whole cart(mm)4505306006006507007001200
    8ground clearance(mm)5075
    9wheels base(mm)1500170018002000
    10axles distance(mm)250031003400390043004800520010000
    11turning radius(mm)250131013401390143014801520110001
    12turning typeturning while driving with no stop
    13control method for turningcontrol button
    14turning structuremechanical
    15motor power(Kw)3.556710121515
    16wheel diameter(mm)Ф300 x 4Ф350 x 4Ф400 x 4Ф400 x 6Ф500 x 6Ф600 x 8
    21battery modelD-250 x 24D-33 x 24D-400 x 24D-440 x 24D-250 x 36D-330 x 36D-440 x 36D-600 x 36
    22battery maintenancefree of maintenance
    23charger's installationinstalled on cartsplit-type
    24charger functionautomatic charging
    25radar control3-0.3m, automatic stop for obstacles
    26warning equipmentsound and light
    27other functionsturning light, night light and power display
