Henan Remarkable Intelligent Technology Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | Remarkable |
| Model Number : | RWP-3T |
| Certification : | CE, ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 600 sets per year |
| Delivery Time : | 30-45 work days |
The trackless electric flat car can turn 360° conveniently, with buttons such as forward, backward, up and down, speed change, direction change, abnormal light mark, light bulb mark, management authority key, etc. With the advantages of simple operation, stable driving at corners and easy maintenance, this model is favored by many companies and manufacturers.Trackless electric flat car has remarkable characteristics and advantages. It can carry out the transportation work more freely and conveniently, and can carry out basic operations such as straight-line driving, turning in place, turning in driving, etc. In addition, it can also have the functions of requiring people to terminate, move vertically and horizontally, and hydraulic lifting service platform, which can make the shipment more efficient and further improve the productivity.

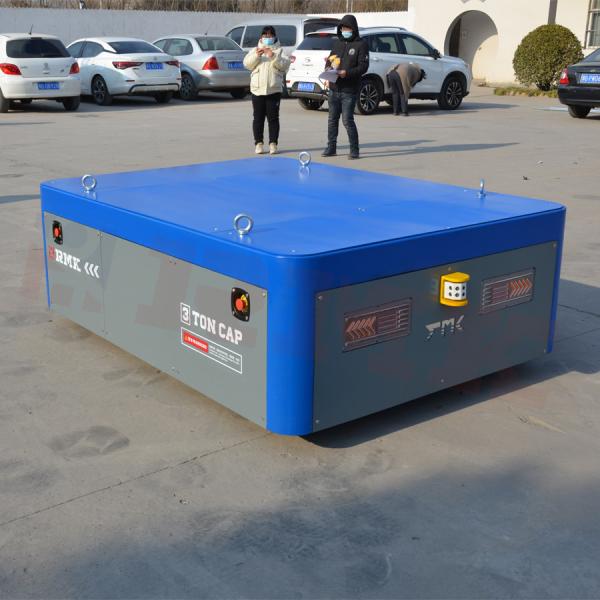

Battery Operated Material Transfer Trolley , 3 Tons Wireless Electric Flat Car
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
3 Ton Hydraulic Lifting Mold Transfer Car Advantages:
In Order To Facilitate Customers To Carry Out Regular Inspection And Maintenance Of The Car Body, Our Design Engineers Designed The Lifting Mode Of The Car As The Whole Body Lifting, Which Can Not Only Achieve The Hydraulic Lifting Function Required By Customers, But Also Protect The Car Parts From Dust And Other Damage. Customers Only Need To Open The Maintenance Cover On The Car Table To See The Whole Electrical System Of The Car, Including The Hydraulic System, This Design Is Very Convenient For Customers To Repair Every Part Of The Car.
|
|
