Henan Remarkable Intelligent Technology Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | Remarkable |
| Model Number : | RWP-20T |
| Certification : | CE, ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability : | 300 sets per year |
| Delivery Time : | 30-45 days |
Remarkable Trackless Transport Vehicle Weighs From 1 Ton To 300
Tons. Heavy Trackless Transfer Trolley Is Convenient For
Manufacturing Large Mechanical Equipment And Transporting Heavy
Materials Such As Concrete And Mold. It Is Suitable For Large
Production Workshops, Sites And Outdoor Sites. It Does Not Need To
Lay Track. It Is More Convenient And Flexible To Use, Reduces
Production Costs And Improves Work Efficiency.

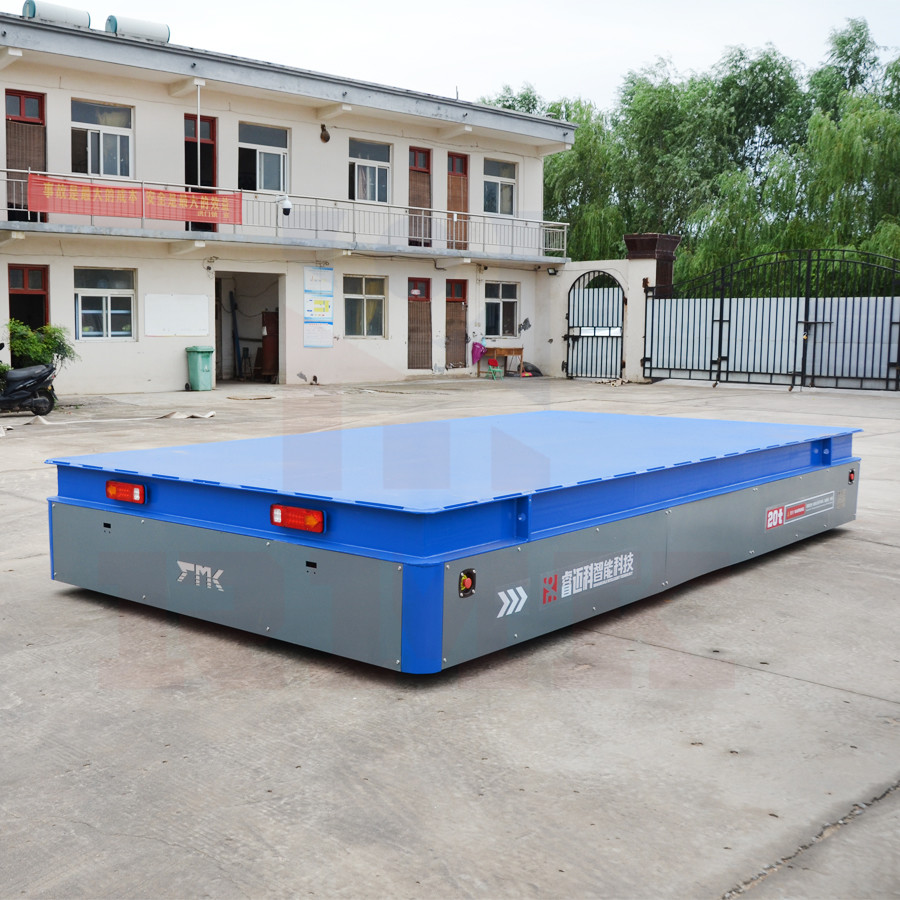

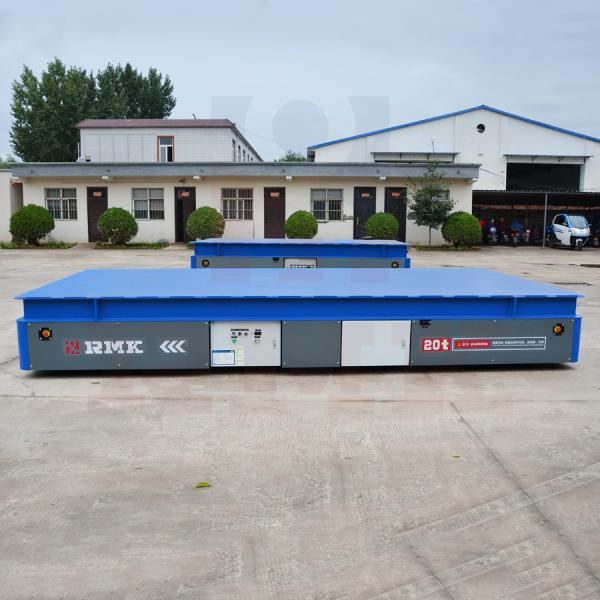

20 Tons Battery Steerable Transfer Trolley Is Suitable For Material
Handling And Transportation In Various Industries. The Light-Weight
Trackless Vehicle Is Easier To Realize High Intelligence And Can
Customize The Steering Wheel System, Lifting System, Positioning
System And Wireless Communication System Intelligent AGV, Such As
Unified, Is Favored By Many Production Enterprises.
| Technical parameters for trackless electric transfer carts | |||||||
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure | ||||||
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground | |||||
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 | ||||||
| wheels base(mm) | 1500 | 1700 | 1800 | ||||
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop | ||||||
| control method for turning | control button | ||||||
| turning structure | mechanical | ||||||
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 | ||
| wheel material | ZG55+hydropur ture | ||||||
| running speed(m/min) | 0-20 | ||||||
| brake principle | electric magnetic brake | ||||||
| operation method | with wire or no wire | ||||||
| battery maintenance | free of maintenance | ||||||
| charger's installation | installed on cart | split-type | |||||
| radar control | 3-0.3m, automatic stop for obstacles | ||||||
| warning equipment | sound and light | ||||||
| other functions | turning light, night light and power display | ||||||
This Kind Of Electric Handling Bogie Usually Be Used As One
Automated Transport Vehicle For Factory Transportation To Carry
Various Heavy Stuff And Workpiece. As Customers' Working
Environment These Transfer Carts Equipment Can Be Used In
High-Temperature, Anti-Explosion Or Other Sever Condition With
Strong Bearing Capacity. These Material Handling Equipment Are More
Suitable For That High Using Frequency And Long Running Distance.
Normally, The Hydraulic Lifting Device And PLC Control System Could
Be Added On The Motorized Handling Transfer Carts To Meet Special
Using Condition.
|
|
