Heavy load customized battery powered orbit cross transfer bogie

Henan Remarkable Intelligent Technology Co., Ltd.
Contact Now
    Buy cheap Heavy load customized battery powered orbit cross transfer bogie from wholesalers

    Buy cheap Heavy load customized battery powered orbit cross transfer bogie from wholesalers
    • Buy cheap Heavy load customized battery powered orbit cross transfer bogie from wholesalers
    • Buy cheap Heavy load customized battery powered orbit cross transfer bogie from wholesalers
    • Buy cheap Heavy load customized battery powered orbit cross transfer bogie from wholesalers
    • Buy cheap Heavy load customized battery powered orbit cross transfer bogie from wholesalers

    Heavy load customized battery powered orbit cross transfer bogie

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : RWP
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

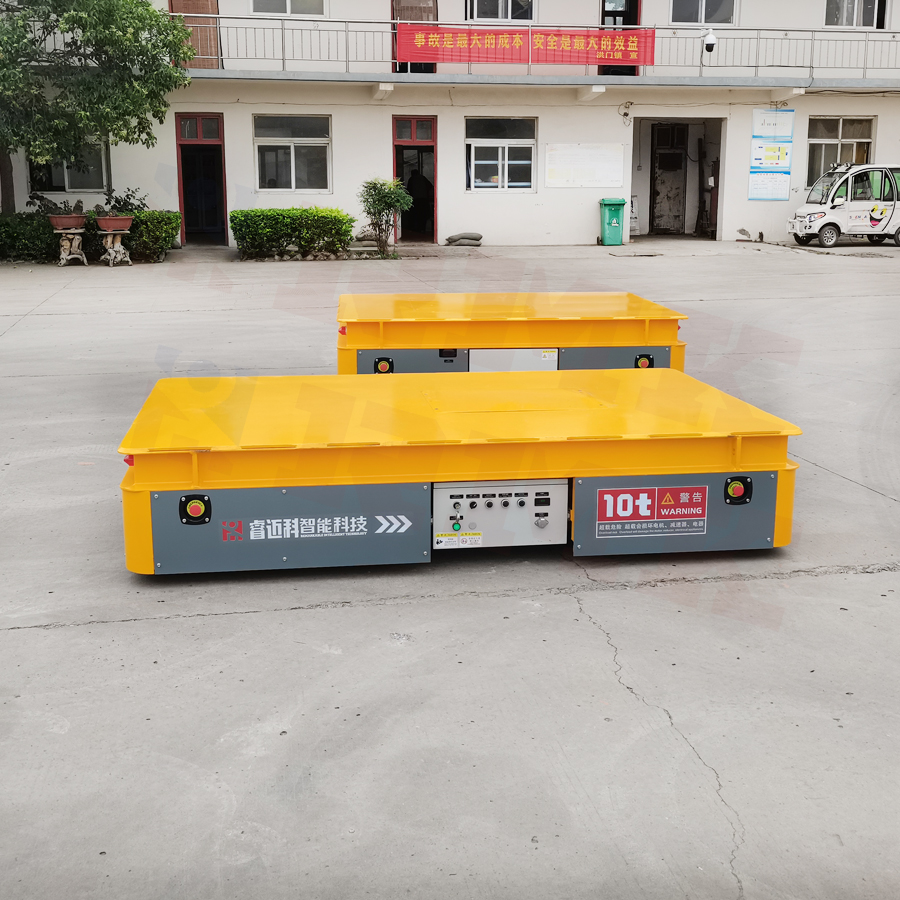

    Heavy load customized battery powered orbit cross transfer bogie


    Heavy load customized battery powered orbit cross transfer bogie


    Remarkable heavy duty platform carts are utilised to transfer large and bulky injection molds within production plants, in both medium and large sized companies.Especially in the automobile industry and mechanical equipment industry.These companies have numerous molds which on a daily basis must be transferred within the factory from a storage location to the molding presses, to maintenance rooms and so on. So, the most effective way is to use Battery power platform trolleys,Remarkable is a professional heavy duty platform carts manufacturer to improve their operations.

    Such as auto parts manufacturers, mechanical equipment manufacturers, electrical equipment manufacturers and other large companies,The large component parts are manufactured by injection molding using large molds which can weigh close to 100 tons. To maximise production efficiency requires a strong technical competence but also the dynamic handling of all development and production steps using specialised heavy materials handling equipment.



    Heavy load customized battery powered orbit cross transfer bogie


    Remarkable was to design and build a die transfer cart, or more specifically, a self-propelled OMNI-directional heavy duty platform cart to manage the movement of the molds within the plant. The advantage of this is safety,speed up mold transportation within the plant and improve factory productivity,Optimise the use of space in the mold storage area.We can design roller carrier, pallet, lifting device according to the needs of customers and the characteristics of transport materials, and cooperate with the transfer vehicle.


    Technical parameters for electric transfer carts
    1rated load(t)5101520304050150
    2impacted rated load(t)7.51522.530456075225
    3structure of framesteel plates welded, beam structure
    4max. wheel load(t)2.84.34.85.67.7101227
    5ground requirementcement floorsteel plate ground
    6table size(mm)3000×20003600×20004000×22004500×22005000×22005500×2300

    6000×

    2300

    10000×

    3000

    7height of the whole cart(mm)4505306006006507007001200
    8ground clearance(mm)5075
    9wheels base(mm)1500170018002000
    10axles distance(mm)250031003400390043004800520010000
    11turning radius(mm)250131013401390143014801520110001
    12turning typeturning while driving with no stop
    13control method for turningcontrol button
    14turning structuremechanical
    15motor power(Kw)3.556710121515
    16wheel diameter(mm)Ф300 x 4Ф350 x 4Ф400 x 4Ф400 x 6Ф500 x 6Ф600 x 8
    21battery modelD-250 x 24D-33 x 24D-400 x 24D-440 x 24D-250 x 36D-330 x 36D-440 x 36D-600 x 36
    22battery maintenancefree of maintenance
    23charger's installationinstalled on cartsplit-type
    24charger functionautomatic charging
    25radar control3-0.3m, automatic stop for obstacles
    26warning equipmentsound and light
    27other functionsturning light, night light and power display
