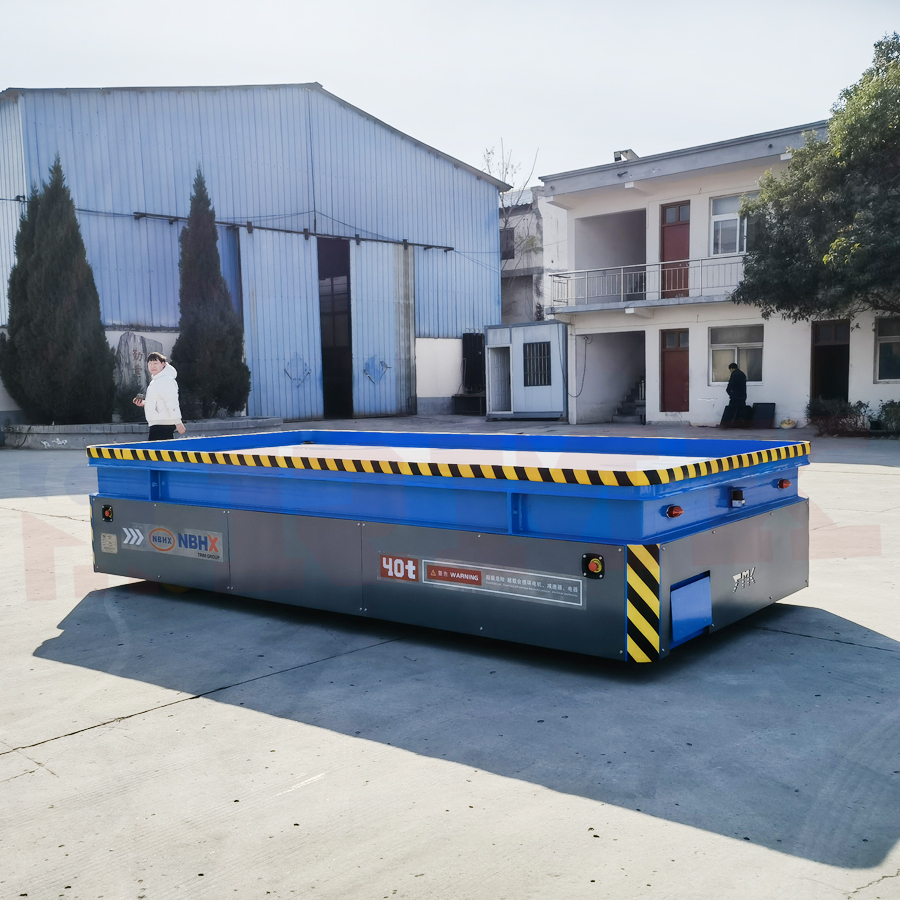

    Heavy Duty Transporter Platform Material Handling Battery Powered Transfer Trolley

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : RWP-40 Ton
    Certification : ISO,CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    Heavy Duty Transporter Platform Material Handling Battery Powered Transfer Trolley

    Heavy Duty Transporter Platform Material Handling Battery Powered Transfer Trolley


    The RWP series can provide a load capacity of 0 ~ 500 ton for one vehicle, making them ideal for transporting large-size and large-tonnage workpieces. It can run on asphalt, self-leveling, concrete, steel and hard soil ground, and has a strong adaptability to ground conditions. Because it has the function of self-lifting of the whole vehicle, in addition to being used to directly carry the workpiece, it can also in directly carry the workpiece after self-supporting by drilling into the tooling frame and lifting the tooling frame. Multiple RWP trackless transfer trucks can be synchronized to support very large components, depending on user requirements. The trackless transporters can be remotely controlled and can also be used as a fully automated AGV transport system.


    Heavy Duty Transporter Platform Material Handling Battery Powered Transfer Trolley


    Technical parameters for electric transfer carts
    1rated load(t)5101520304050150
    2impacted rated load(t)7.51522.530456075225
    3structure of framesteel plates welded, beam structure
    4max. wheel load(t)2.84.34.85.67.7101227
    5ground requirementcement floorsteel plate ground
    6table size(mm)3000×20003600×20004000×22004500×22005000×22005500×2300

    6000×

    2300

    10000×

    3000

    7height of the whole cart(mm)4505306006006507007001200
    8ground clearance(mm)5075
    9wheels base(mm)1500170018002000
    10axles distance(mm)250031003400390043004800520010000
    11turning radius(mm)250131013401390143014801520110001
    12turning typeturning while driving with no stop
    13control method for turningcontrol button
    14turning structuremechanical
    15motor power(Kw)3.556710121515
    16wheel diameter(mm)Ф300 x 4Ф350 x 4Ф400 x 4Ф400 x 6Ф500 x 6Ф600 x 8
    21battery modelD-250 x 24D-33 x 24D-400 x 24D-440 x 24D-250 x 36D-330 x 36D-440 x 36D-600 x 36
    22battery maintenancefree of maintenance
    23charger's installationinstalled on cartsplit-type
    24charger functionautomatic charging
    25radar control3-0.3m, automatic stop for obstacles
    26warning equipmentsound and light
    27other functionsturning light, night light and power display

    After sales service commitment


    Our company promises: the load-bearing safety factor of the electric flat car is not less than 120%.

    According to the specific situation of users, we can design auxiliary devices or foundation drawings free of charge, and provide technical services or drawings. Free personnel to the user's installation and debugging or guidance installation and debugging qualified, to meet the user's satisfaction, sign and seal.


    In case of quality problems of various parts of flat cars produced and sold by Henan Remarkable Intelligent Technology Co., Ltd., our company will implement "Three Guarantees" service according to the regulations, and the after-sales service department shall undertake this work.


    After receiving the customer's information about the quality of parts and components (calls, letters), the after-sales service personnel shall give a reply within 2 hours, and send personnel to the scene within 24 hours, and rush to the scene in 12 hours for emergency problems. After sales hotline: 0373-3971116


    While solving the quality problems of the sold products in time, the after-sales service personnel have the obligation to provide technical consultation, technical training and answer other product related problems free of charge.


    During the warranty period (within one year after the installation, commissioning and acceptance are qualified and signed and sealed), if the products provided by our company are damaged due to quality problems or cannot work normally, we will repair or replace them free of charge. If outside the warranty period, we promise to charge only the cost.


    Firmly establish the idea that the user is God, all for the sake of the user, efficient, serious, good from beginning to end, deal with quality issues, pay attention to credibility, and maintain the image of Henan Remarkable Intelligent Technology Co.,Ltd.
