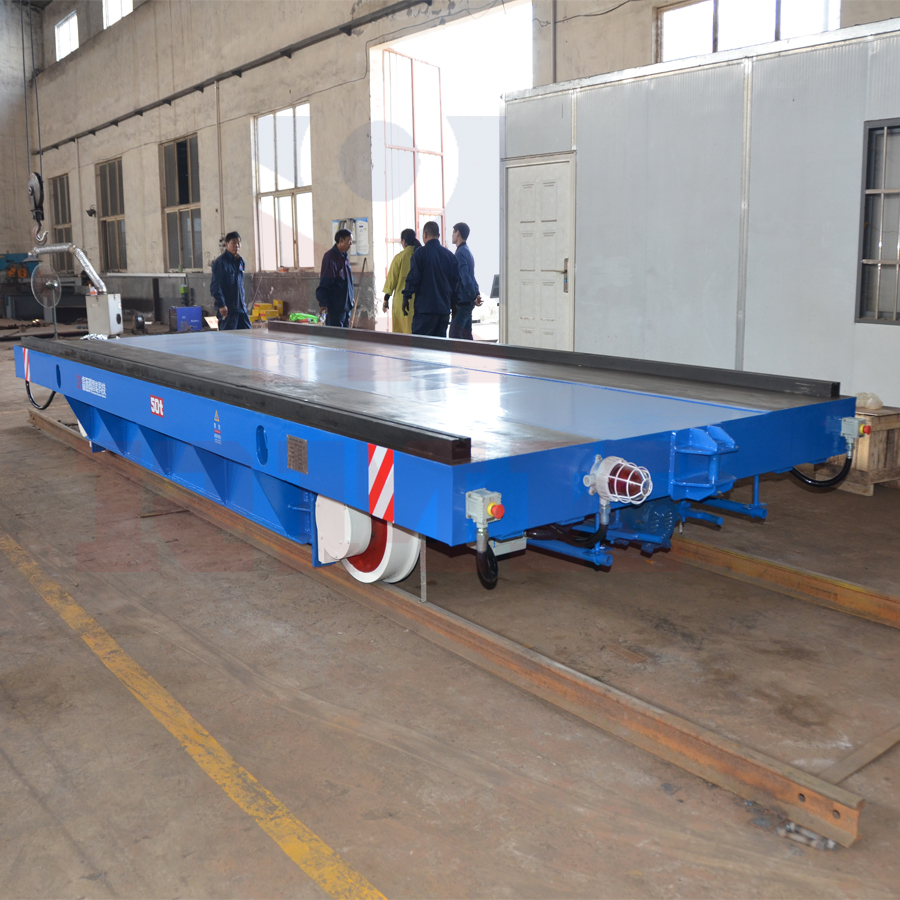

50 Ton Battery Powered Track Rail Transfer Trailer
The Rail Transfer Trailer Is Designed For Transporting Heavy Cargoes Or Equipment Within And Without Workshops To Increase Production Efficiency. They Are Most Suitable For Many Fields Such As Metallurgy, Foundry, Casting And Injecting Factory, Manufacturing Industry, Paper And Plastic Processing Factory, Seaport, New Factory Construction, And So On. These Transfer Carts Can Run On Floor-Mounted Rails Or Cement Floors For Customers' Selection. They Can Be DC Battery Powered Or AC Powered. Typically Used For Moving Materials Such As Steel Tubes, Tanks Of Liquids, Steel Coils, Steel Beams, Machine Parts From One Location To Another.
Contact Us For A Free Consultation Based On Your Requirements. Remarkable Sells Its 50 Ton Battery Powered Track Rail Transfer Trailer worldwide!
| Technical parameters for rail power transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
| Note: 1) Other gauges, table sizes and load tonnages can be
customized according to user requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. | ||||||||||
Literally Speaking, It Is An Electric Battery Power Trolley With Rails, Which Is The Traditional And Mature Type Railway Transport Trailer For Dies. More Importantly, It Has Been A New Favorite In The Industry Transport Field All Over The World With The Hot Market. Especially For The Workshop Transportation.
The Series Electric Transfer Cart Can Be Suitable To Be Used In A Bad Environment, Such As High-Temperature And Anti-Explosion Conditions. Compared With The KPX Series, The Use Is Not Limited; Compared With The KPD Series, It Is Not So Strict A Limitation For The Construction Of The Railway. The Load Capacity Is Not Limited And If The Running Distance Is More Than 50m, A Cable Arranger Should Be Installed To Arrange The Cables, The Running Distance Of The KPJ Series Can Reach 200m.
