Rail Traverser Ferry-Heavy Duty Coil Transfer Cart
Custom rail traverser ferry use steel coil mover electric heavy-duty coil transfer cart
Remarkable designed and manufactured the Custom rail traverser ferry use steel coil mover electric heavy-duty coil transfer cart and provide innovative handling solution with more than 17years experience. The transfer cart can be used in industrial plants, ports, workshops, production lines,s and so on to transport coil, mold, steel products, workpieces,s and so on. All the solutions are designed as per customers' true demand.

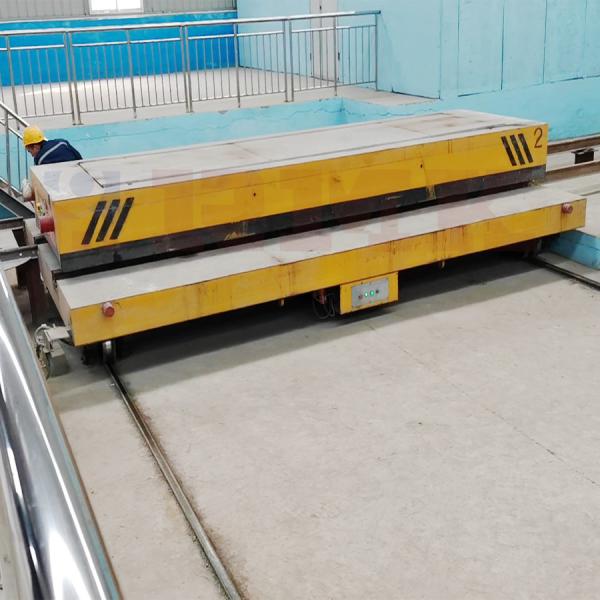

Remarkable supplied wireless remote control platform rail transfer trolley, The Ferry Transfer Cart made by REMARKABLE can be used in various occasions, such as cargo handling, rail transit. Cargo transport and rail transit ferry can also be used simultaneously. Usually, the ferry transfer cart is divided into two sections: upper part and lower car bodies, one for transshipment and one for the ferry. Meanwhile, we have a professional and excellent team who can make it with three layers of car body according to your needs to meet the working site requirements. It’s widely used in metallurgy, machinery manufacturing, heavy industry manufacturing, mold manufacturing, steel plate distribution, building materials handling, etc.
| Technical parameters for rail power transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheelbase A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
| Note 1) Other gauges, table sizes, and load tonnages can be
customized according to user requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. | ||||||||||
The battery-powered rail transfer cart is a good choice if meeting the following features:
1. The running distance is not limited to the battery-powered transfer cart.
2. Low using frequency(The spare battery can be provided if higher
using frequency).
3. The transfer trolley is required to run on the rails
4. The whole working route needn't turn
5. Environmental protection, safety, and energy saving
6. The transfer trolley is required easy operation at a low cost
7. The whole trolley's height is lower
8. Despite running on indoor or outdoor, high temperature or
explosive environment, ferry or cross rail, the transfer cart can
realize.
9. Dimensions, capacity, loading platform superstructure, speed,
and many other special functions can be customized as per client
request.
| Our Related Product | |||||
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer vehicle | KPG | Conductor Rail/Battery | Load range 1-500ton can be customized per client demand | Running distance | Ordinary goods, such as steel plate, workpiece, equipment, etc special goods, such as a coil. column, ladle, etc Logistics, warehouse carrying |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling vehicle | KPC | Busbar | Working shop | ||
| Dragged Cable transfer cart | KPT | Dragged Cable | |||
| Non-power transfer cart | KP | Non-power | 1-100t | Working shop | |
| Towed Trailer | QRP | Tractor | Load range 1-500t, can be customized,steel floor is demanded | Working environment | |
| Trackless Handling Machine | RWP | Battery | Working path | ||
| AGV Automatic Trackless Transfer Cart | AVG | Battery | Load range 1-300ton can be customized per client demand | Running Distance: Unrestricted | |
| RGV Automatic rail carrier | RGV | Battery/Busbar/rail | 1-150t can be customized per client demand | Circular track and linear reciprocating | |
| Ladle transfer cart | RGP | Battery/Cable | Load range 1-500ton can be customized per client demand | anti-high temperature | |
|
|
