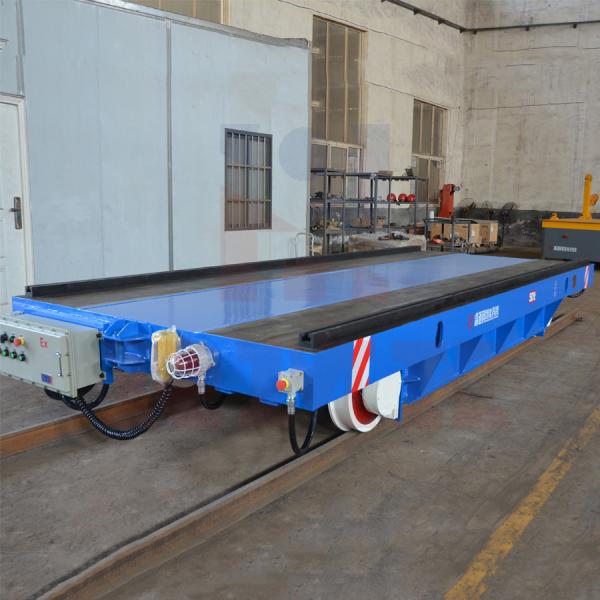

50 Ton Motorized Rail-Guided Transfer Cart
The motorized rail-guided transfer cars are designed for industrial fields material transport. It is a kind of motorized material handling tool mounted and running on the steel track. The motorized transfer car is manufactured using the best grade material and is in conformity with international quality standards. The assortment of rail-guided cars is highly appreciated by the clients for their features such as longer functional life and low maintenance.
Remarkable rail transfer cart can handle upwards of 500ton and work well in areas with limited floor space. These materials Motorized transfer carts are more accommodating for moving long loads through restrictive passageways or doorways. Usually, the heavy loads Motorized transfer vehicles are used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing, and others. These electric transfer trolleys are designed to operate on floor-mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
| Technical parameters for rail power transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheelbase A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
| Note 1) Other gauges, table sizes, and load tonnages can be
customized according to user requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. | ||||||||||
Applications
All kinds of material transport;
Connect different bays of an industrial plant;
Connect a production area with a warehouse or a yard;
Automatic feeding of a production area;
Relieve overhead cranes work;
Portable machine base;
Assembly mount;
Heavy equipment transporter with lift deck;
Pre-cast concrete production trolleys;
The portable base for jib arm with a spreader beam.
