    Explosion Proof Transport Trucks High Temperature Transfer Rail Car

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : KPX/KPD
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

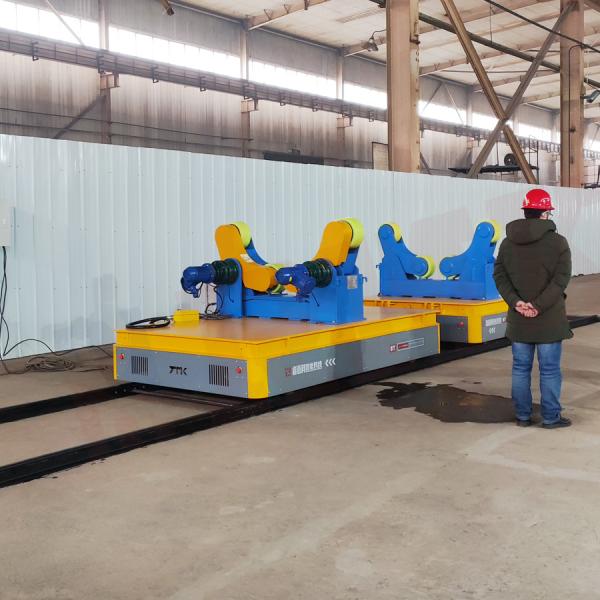

    Explosion Proof Transport Trucks High Temperature Transfer Rail Car


    Explosion Proof Transporter Trucks High Temperature Transfer Rail Car


    Remarkable designed and made a series of explosion-proof transporter trucks that are electrical and omnidirectional. Widely used in aerospace, Oil & Gas sector and spray production lines, and precision equipment manufacturing workshops.

    These battery-powered explosion-proof transporter trucks have been designed taking into account the very special customer requirements, which are needed to handle very heavy materials on particular ships used for collecting and storing oil and natural gas, also known as FPSO and FLNG.
    In order to be able to operate in such a strict environment, the explosion-proof transporter trucks have to comply with extremely binding technical specifications.


    The most important thing is that a Remarkable explosion-proof transfer vehicle can operate in the environment at risk of explosion, used for the extraction and storage of fossil fuels. For this reason, these explosion-proof transporter trucks are fitted exclusively with ATEX components and have been certified ATEX by a certified body that has checked their design and realization of them.

    A very special feature of these explosion-proof battery-powered trucks is that they have been supplied with a battery charging station that is also ATEX-certified. It is, therefore, possible to recharge the transporter truck batteries even in a dangerous area, classified as ATEX.
    Given the restricted spaces of a workshop, these explosion-proof transporter trolleys are completely omnidirectional, so they can therefore move in any direction thus optimizing the maneuver spaces needed.

    Technical parameters for electric transfer carts KPX series
    ModelKPX-2tKPX-5tKPX-10tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-150t
    Rated Load(t)25102025304050150
    Table Size(mm)Length2000350036004000450045005000550010000
    Width150020002000220022002200250025003000
    Height4505005005506006006506501200
    Wheel Base(mm)120025002600280032003200380042007000
    Rail Inner Gauge(mm)120014351435143514351435143514352000
    Wheel Diameter(mm)Ø270Ø300Ø300Ø350Ø400Ø400Ø500Ø500Ø600
    Wheel Quantity444444448
    Ground Clearance(mm)505050505050505075
    Running Speed(m/min)0-250-250-250-200-200-200-200-200-18
    Motor Power (KW)11.21.62.233.54515
    Battery Capacity (Ah)180180180180250250300330600
    Battery Voltage(V)243648484848484872
    Running Time When Full Load4.325.44.8443.53.63.32.9
    Running Distance for One Charge (Km)6.58.17.24.84.84.24.343.2
    Max Wheel Load (KN)14.425.842.677.794.5110.4142.8174266
    Reference Weight(t)2.83.64.25.96.56.87.6827
    Recommended Rail ModelP15P18P18P24P38P38P43P43QU100

    1. Load capacity, table size, and rail gauge can be customized;
    2. Options: Remote radio control (imported or made in china);
    3. Automatic stop when detecting obstacle or person, limit switches (to limit travel);
    4. Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery);
    5. Motor (DC motor with brush and DC motor brushless);
    6. Electrical parts (imported or made in China).


    Remarkable also produces IECEx / ATEX trolleys for hazardous environments with different designs and each electric trolley can be customized on request by the customer in each of its details. Here some examples can be seen: IECEx / ATEX trolleys for hazardous environments

    50 ton-5500×2300

    Main features:
    Capacity: 50 t (up to over 500 tons)
    Power Supply Mode: Explosion-proof cable drum

    Steering motors: Explosion-proof grade is DⅡBT4

    Dimensions: 5500×2300 mm
    Speed: 5/8m/min
    Control: Wire Hand Pendant
