| Brand Name : | Remarkable |
| Model Number : | RWP-10T |
| Certification : | CE, ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability : | 300 sets per year |
| Delivery Time : | 50 days |

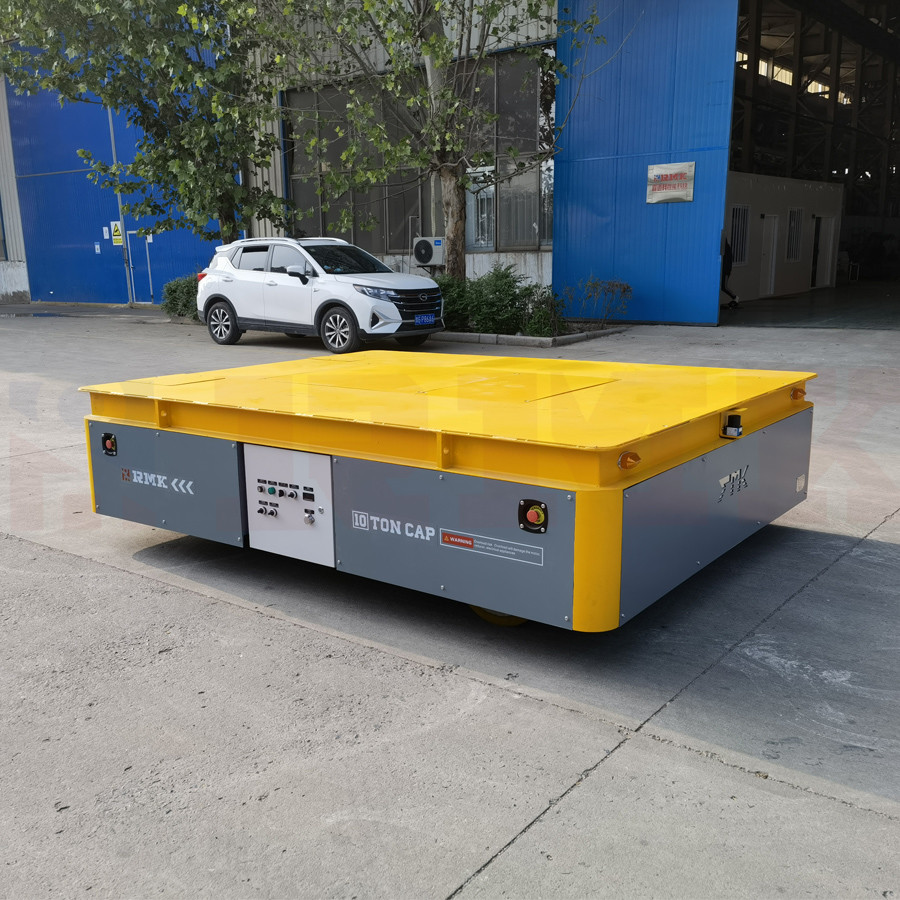

10 Tons Battery Transfer Trolley With Hydraulic Lifting Function
10 Tons Battery Transfer Trolley With Hydraulic Lifting Function Is A Mechanical Equipment That Uses Electric Power To Drive The Hydraulic System To Realize The Lifting And Lowering Of Pallet Goods, And Complete The Handling Work With People. And Pollution, The Body Design Of The Car Body Is Firm, And It Is Widely Used In Workshops, Pharmaceutical Factories, Warehouses, Upstairs Work, And Places With Long Distances.
Automated Die Transfer System Cart Is Very Popular Transport
Solution In Mold Manufacturing Industry.
The Cart System Can Be Controlled By Push Button Pendant Or Remote
Control.
It Can Steer Freely On Plane Floor With 360 Degrees
The Table Size Custom According The Mold Dimension
Running Speed Can Be Adjusted From 0-15m/Min
DC Motor Driven
Product Advantages:
1. Trackless Transfer Cars Can Meet The Needs Of Different Turning
Directions.
2. It Can Satisfy Free Left-Right Steering And 360-Degree In-Situ
Rotation.
3. The Trackless Transfer Cars Can Be Equipped With An Optional
Human Encounter Detectiondevice, Which Can Detect Obstacles Or
People In The Running Direction In Time Andautomatically Control
The Cart To Stop.
4. The Power Supply Mode Of Trackless Transfer Carts Can Be
Selected, And Different Powersupply Modes Can Be Used According To
Different Road Conditions.
| Technical parameters for trackless electric transfer carts | |||||||
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure | ||||||
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground | |||||
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 | ||||||
| wheels base(mm) | 1500 | 1700 | 1800 | ||||
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop | ||||||
| control method for turning | control button | ||||||
| turning structure | mechanical | ||||||
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 | ||
| wheel material | ZG55+hydropur ture | ||||||
| running speed(m/min) | 0-20 | ||||||
| brake principle | electric magnetic brake | ||||||
| operation method | with wire or no wire | ||||||
| battery maintenance | free of maintenance | ||||||
| charger's installation | installed on cart | split-type | |||||
| radar control | 3-0.3m, automatic stop for obstacles | ||||||
| warning equipment | sound and light | ||||||
| other functions | turning light, night light and power display | ||||||
|
|
