    Forklift Battery Transfer Cart

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : KPX/KPD
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

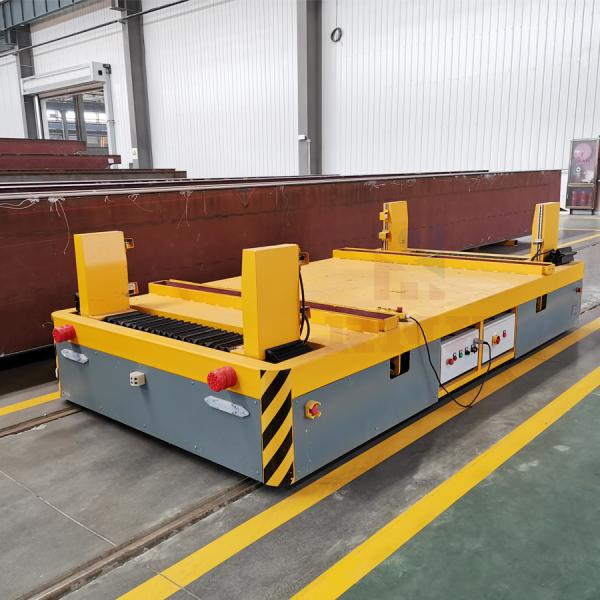

    Forklift Battery Transfer Cart

    Forklift Battery Transfer Cart


    Remarkable designed and manufactured the battery-powered transfer cart and provide innovative handling solution with more than 17 years of experience. the railroad cart can be used in industrial plants, ports, workshops, production lines, and so on to transport ladles, coil, mold, steel products, workpieces, and so on. All the solutions are designed as per customers' true demand.

    The battery Transfer Cart is used for the horizontal movement of materials, assemblies, and other items. It is powered by a storage battery, which is installed on the transfer carts. The transfer carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely, and safely move up to 500 tons. Generally, the heavy load transfer carts are used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing, and others. These carts are designed to operate on floor-mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

    Contact Us For A Free Consultation Based On Your Requirements. Remarkable Sells Its Battery transfer cart Worldwide!



    Technical parameters for Battery-powered electric transfer carts KPX series
    ModelKPX-2tKPX-5tKPX-10tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-150t
    Rated Load(t)25102025304050150
    Table Size(mm)Length2000350036004000450045005000550010000
    Width150020002000220022002200250025003000
    Height4505005005506006006506501200
    Wheel Base(mm)120025002600280032003200380042007000
    Rail Inner Gauge(mm)120014351435143514351435143514352000
    Wheel Diameter(mm)Ø270Ø300Ø300Ø350Ø400Ø400Ø500Ø500Ø600
    Wheel Quantity444444448
    Ground Clearance(mm)505050505050505075
    Running Speed(m/min)0-250-250-250-200-200-200-200-200-18
    Motor Power (KW)11.21.62.233.54515
    Battery Capacity (Ah)180180180180250250300330600
    Battery Voltage(V)243648484848484872
    Running Time When Full Load4.325.44.8443.53.63.32.9
    Running Distance for One Charge (Km)6.58.17.24.84.84.24.343.2
    Max Wheel Load (KN)14.425.842.677.794.5110.4142.8174266
    Reference Weight(t)2.83.64.25.96.56.87.6827
    Recommended Rail ModelP15P18P18P24P38P38P43P43QU100

    1. Load capacity, table size, and rail gauge can be customized;
    2. Options: Remote radio control (imported or made in china);
    3. Automatic stop when detecting obstacle or person, limit switches (to limit travel);
    4. Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery);
    5. Motor (DC motor with brush and DC motor brushless);
    6. Electrical parts (imported or made in China).



    The remarkable KPX series' electric transfer trolley is battery powered. The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. In this way, we can make the flat cart start, stop, go forward, backward, adjust the speed, and so on.

    The battery-powered transfer cart is a good choice if meeting the following features:

    1. The running distance is not limited for the battery-powered flat car
    2. Low using frequency(The spare battery can be provided if higher using frequency)
    3. Despite turning or going straight, the rail transfer car can realize
    4. Despite running indoors or outdoor, high temperature or explosive environment, ferry or cross rail, the transfer car can realize.
    5. Dimensions, capacity, loading platform superstructure, speed, and many other special functions can be customized as per client request.



    What Product Handling Applications Use Battery Transfer Carts?

    1. Coils (V-Groove deck)
    2. Tanks (size/stability for uniformly distributed loads)
    3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
    4. Sub-Assembly shuttle from one line to another line
    5. Maintenance cart for motors and pumps
    6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
    7. Material shuttle for steel tubing (flat decking with guard rails)
    8. Elevating platform for assembly process (integrated screw-jack table)
    9. Sand casting (flat decking)

    You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.

    1. The load capacity of the transfer car is ( ) ton.

    2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).

    3. The voltage is ( ) V, ( ) HZ, 3 phase.

    4. The running time is ( ) hours per day.

    5. The running distance is ( ) m per time.

    6. Does The transfer cart run on the rails or common floor?

    7. Whether exist turning?

    8. Whether have another special requirement?
