20 Tons Flatbed Trolley For Material Transportation

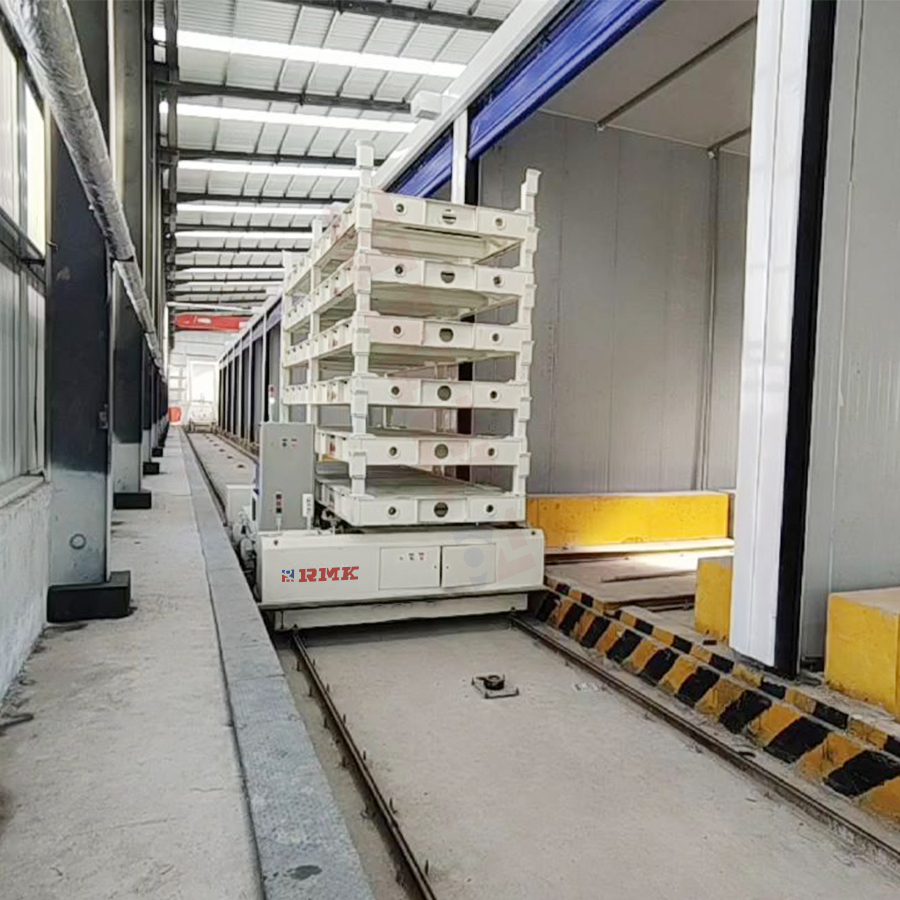

The flatbed trolley for material transferring is an electric-powered rail type transfer trolley designed for factory material handling. The flatbed trolley is manufactured using best-grade material and is in conformity with international quality standards. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable moveable machine base.
Heavy-duty transfer trolley manufacturers in china are hot and mature transfer equipment. It has become a new favorite material handling equipment in the industry transport field around the world, especially for workshop transport. the kinds of Omni functional heavy load rail track electric trolley, heavy-duty transfer trolley manufacturers in china can run on vertical rail, “L” rail, “S” rail,arc-shaped rail, etc.
The 20 tons flatbed steerable transfer trolley is battery-powered, so it can be an easy operation. You can also choose the supply power ways according to your requirements. Such as battery-operated, rail motorized, cable reel powered, etc. The 25 tons coil transfer car battery-operated trolley with variable speed drive system is widely used combined with the crane.
| Technical parameters for rail power transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheelbase A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
| Note 1) Other gauges, table sizes, and load tonnages can be
customized according to user requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. | ||||||||||
Applications
All kinds of material transport, such as steel pipe, metal coils,
ladle, molds, etc;
Connect different bays of an industrial plant;
Connect a production area with a warehouse or a yard;
Heavy equipment transporter with lift deck;
Pre-cast concrete production trolleys;
The portable base for jib arm with spreader beam;
The flatbed trolley for material transferring can be customized to meet the real application demands.
