    Battery Operated 20 Tons Roll Materials Rail Transfer Trolleys

    Ask Lasest Price
    Brand Name : Remarkable
    Model Number : KPX
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600 sets per year
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

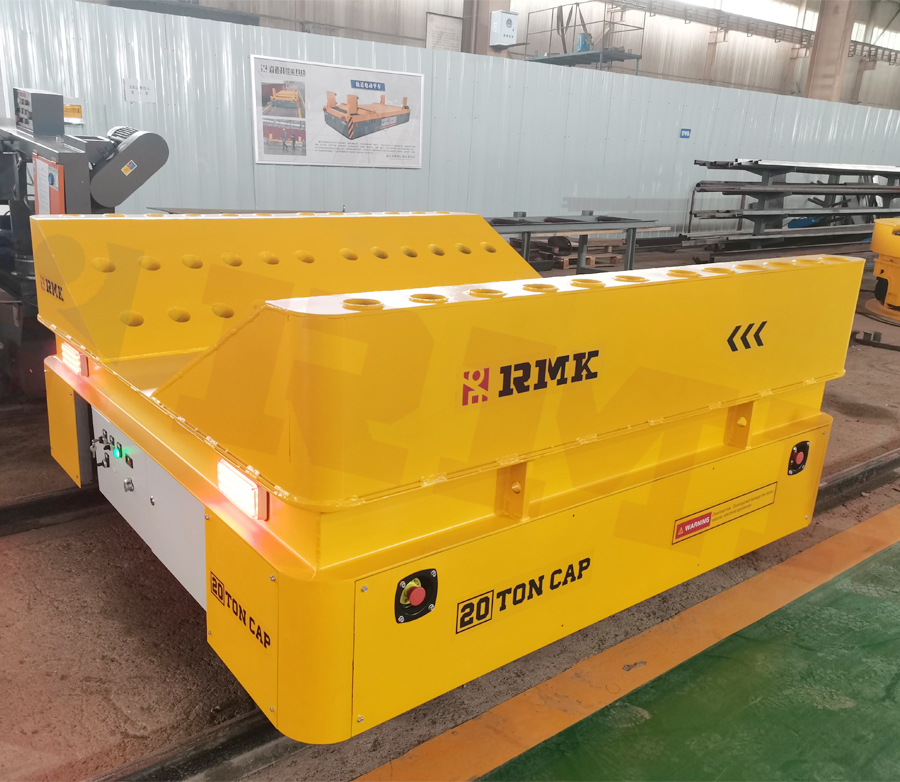

    Battery Operated 20 Tons Roll Materials Rail Transfer Trolleys

    Battery Operated 20 Tons Roll Materials Rail Transfer Trolleys


    The Battery Operated 20 Tons Roll Materials Rail Transfer Trolleys has low requirements for track laying. Type S and arc tracks as well as some ferry tracks can operate stably without insulation, and the running distance is unlimited. However, due to the battery power supply, the battery needs regular maintenance, so that the longer the battery is used, the higher the working rate.

    How to select an electric flatbed suitable for your working environment, and what aspects should you pay attention to when selecting an electric flatbed to carry goods?

    Due to the widespread use of electric flatbed trucks, it is necessary to know the operation conditions when selecting models:

    1. Pay attention to the working environment: the laying of flat car track shall be carried out according to the requirements of foundation construction. Determine whether the working environment and temperature are flammable and explosive.

    2. Attention to workload: select the relative matching battery with different workload. The user needs to explain when ordering. The matching battery can be selected according to the user's workload.



    Application of Electric Rail Transfer Truck

    The electric rail transfer truck is also called headless transfer cart, motorized flat car, it is a kind of handling tool to transport cargos from one bay to another. Due to large capacity, it has been widely used in metallurgy (ladle transfer or hot steel transportation). The electric rail transfer truck is also applied to handling container or ship maintenance due to the custom table or deck (the table size can be customized as per needs).

    And more, our electric rail transfer truck is so popular in Machinery Fabrication, Auto Makers, Heavy Industry, Light Industry, Mould Maker, Construction Machinery Maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military Industries and so on.


    Technical parameters for Battery powered electric transfer carts KPX series
    ModelKPX-2tKPX-5tKPX-10tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-150t
    Rated Load(t)25102025304050150
    Table Size(mm)Length2000350036004000450045005000550010000
    Width150020002000220022002200250025003000
    Height4505005005506006006506501200
    Wheel Base(mm)120025002600280032003200380042007000
    Rail Inner Gauge(mm)120014351435143514351435143514352000
    Wheel Diameter(mm)Ø270Ø300Ø300Ø350Ø400Ø400Ø500Ø500Ø600
    Wheel Quantity444444448
    Ground Clearance(mm)505050505050505075
    Running Speed(m/min)0-250-250-250-200-200-200-200-200-18
    Motor Power (Kw)11.21.62.233.54515
    Battery Capacity (Ah)180180180180250250300330600
    Battery Voltage(V)243648484848484872
    Running Time When Full Load4.325.44.8443.53.63.32.9
    Running Distance for One Charge (Km)6.58.17.24.84.84.24.343.2
    Max Wheel Load (KN)14.425.842.677.794.5110.4142.8174266
    Reference Weight(t)2.83.64.25.96.56.87.6827
    Recommended Rail ModelP15P18P18P24P38P38P43P43QU100

    1. Load capacity, table size and rail gauge can be customized;
    2. Options: Remote radio control (imported or made in china);
    3. Automatic stop when detecting obstacle or person, limit switches (to limit travel);
    4. Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery);
    5. Motor (DC motor with brush and DC motor brushless);
    6. Electrical parts (imported or made in China).
